Milling

Sắp xếp theo:

grid
list

Dao phay nhôm YG EP923, Dao phá nhôm YG EP923

Liên hệ

Mã sản phẩm: EP923

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle EP923120 12 12 26 83 js12 h6 3 EP923140 14 12 26 83 js12 h6 3 EP923160 16 16 32 92 js12 h6 3 EP923180 18 16 32 92 js12 h6 3 EP923200 20 20 38 104 js12 h6 3 EP923220 22 20 38 104 js12 h6 3 EP923250 25 25 45 121 js12 h6 3 EP923280 28 25 45 121 js12 h6 3 EP923320 32 32 53 133 js12 h6 3

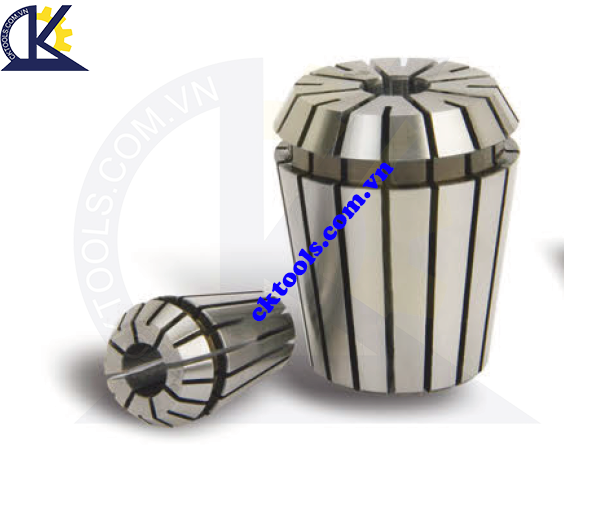

Ống kẹp dao, Collet kẹp dao ER50, METRICTYPE ER50

Liên hệ

Mã sản phẩm: ER50

ER50 EDP No. CLAMPINGCAPACITY 250060 6.0-4.0 250080 8.0-6.0 250100 10.0-8.0 250120 12.0-10.0 250140 14.0-12.0 250160 16.0-12.0 250180 18.0-16.0 250200 20.0-18.0 250220 22.0-20.0 250240 24.0-22.0 250250 25.0-23.0 250260 26.0-24.0 250280 28.0-26.0 250300 30.0-28.0 250320 32.0-30.0 250340 34.0-32.0 250000 STANDARD SET Ø12.0-34.0mm 12pcs 050110 WOODEN TRAY ZWT 50 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay nhôm YG EG930, Dao phay tinh nhôm YG EG930

Liên hệ

Mã sản phẩm: EG930

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle EG930020 R0.20 2 3 3 6 40 0~-0.030 h6 2 EG930020 R0.20 2 3 3 40 0~-0.030 h6 2 EG930030 R0.20 3 3 4 8 40 0~-0.030 h6 2 EG930030 R0.20 3 3 4 40 0~-0.030 h6 2 EG930040 R0.20 4 4 5 12 50 0~-0.030 h6 2 EG930040 R0.20 4 4 5 50 0~-0.030 h6 2 EG930050 R0.20 5 5 8 14 50 0~-0.030 h6 2 EG930050 R0.20 5 5 8 50 0~-0.030 h6 2 EG930060 R0.20 6 6 8 18 65 0~-0.030 h6 2 EG930060 R0.20 6 6 8 65 0~-0.030 h6 2 EG930080 R0.20 8 8 10 22 70 0~-0.030 h6 2 EG930080 R0.20 8 8 10 70 0~-0.030 h6 2 EG930100 R0.20 10 10 14 28 80 0~-0.030 h6 2 EG930100 R0.20 10 10 14 80 0~-0.030 h6 2 EG930120 R0.20 12 12 16 35 90 0~-0.030 h6 2 EG930120 R0.20 12 12 16 90 0~-0.030 h6 2 EG930160 R0.20 16 16 20 40 90 0~-0.030 h6 2 EG930160 R0.20 16 16 20 90 0~-0.030 h6 2 EG930200 R0.20 20 20 25 50 100 0~-0.030 h6 2 EG930200 R0.20 20 20 25 100 0~-0.030 h6 2
Ống kẹp dao, Collet kẹp dao ER11S, SEALED ER COLLET-INCH TYPE ER11S

Liên hệ

Mã sản phẩm: ER11S

ER11S EDP No. CLAMPINGCAPACITY 110108S 1/8 110532S 5/32 110316S 3/16 110732S 7/32 110104S 1/4 ER10S05S STANDARD SET Ø1/8” to 1/4” 5pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay nhôm YG EG522, Dao phay tinh nhôm YG EG522

Liên hệ

Mã sản phẩm: EG522

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle EG522030 3 6 8 57 0~-.0.03 h6 2 EG522040 4 6 11 57 0~-.0.03 h6 2 EG522050 5 6 13 57 0~-.0.03 h6 2 EG522060 6 6 13 57 0~-.0.03 h6 2 EG522080 8 8 19 63 0~-.0.03 h6 2 EG522100 10 10 22 72 0~-.0.03 h6 2 EG522120 12 12 26 83 0~-.0.03 h6 2 EG522140 14 14 26 83 0~-.0.03 h6 2 EG522160 16 16 32 92 0~-.0.03 h6 2 EG522180 18 18 32 92 0~-.0.03 h6 2 EG522200 20 20 38 104 0~-.0.03 h6 2
Ống kẹp dao, Collet kẹp dao ER16S, SEALED ER COLLET-INCH TYPE ER16S

Liên hệ

Mã sản phẩm: ER16S

ER16S EDP No. CLAMPINGCAPACITY 160108S 1/8 160532S 5/32 160316S 3/16 160732S 7/32 160104S 1/4 160932S 9/32 160516S 5/16 161132S 11/32 160308S 3/8 161332S 13/32 ER16S10S STANDARD SET Ø1/8” to 13/32” 10pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay hợp kim YG SEMD98, Dao phay cầu YG SEMD98

Liên hệ

Mã sản phẩm: SEMD98

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle SEMD98001 R0.05 0.1 4 0.2 40 0~-0.012 h6 2 SEMD980013S R0.05 0.1 3 0.2 40 0~-0.012 h6 2 SEMD980013SE R0.05 0.1 3 0.2 40 0~-0.012 h6 2 SEMD980015 R0.075 0.15 4 0.3 40 0~-0.012 h6 2 SEMD9800153S R0.075 0.15 3 0.3 40 0~-0.012 h6 2 SEMD9800153SE R0.075 0.15 3 0.3 40 0~-0.012 h6 2 SEMD980015E R0.075 0.15 4 0.3 40 0~-0.012 h6 2 SEMD980015H R6.0 0.15 4 0.3 40 0~-0.012 h6 2 SEMD980015S R0.075 0.15 4 0.15 40 0~-0.012 h6 2 SEMD980015SE R0.075 0.15 4 0.15 40 0~-0.012 h6 2 SEMD98001E R0.05 0.1 4 0.2 40 0~-0.012 h6 2 SEMD98001H R6.0 0.1 4 0.2 40 0~-0.012 h6 2 SEMD98001S R0.05 0.1 4 0.1 40 0~-0.012 h6 2 SEMD98001SE R0.05 0.1 4 0.1 40 0~-0.012 h6 2 SEMD98002 R0.10 0.2 4 0.4 40 0~-0.012 h6 2 SEMD980023S R0.10 0.2 3 0.4 40 0~-0.012 h6 2 SEMD980023SE R0.10 0.2 3 0.4 40 0~-0.012 h6 2 SEMD98002E R0.10 0.2 4 0.4 40 0~-0.012 h6 2 SEMD98002H R6.0 0.2 4 0.4 40 0~-0.012 h6 2 SEMD98002S R0.10 0.2 4 0.2 40 0~-0.012 h6 2 SEMD98002SE R0.10 0.2 4 0.2 40 0~-0.012 h6 2 SEMD98003 R0.15 0.3 4 0.6 40 0~-0.012 h6 2 SEMD980033S R0.15 0.3 3 0.6 40 0~-0.012 h6 2 SEMD980033SE R0.15 0.3 3 0.6 40 0~-0.012 h6 2 SEMD98003E R0.15 0.3 4 0.6 40 0~-0.012 h6 2 SEMD98003H R6.0 0.3 4 0.6 40 0~-0.012 h6 2 SEMD98003S R0.15 0.3 4 0.3 40 0~-0.012 h6 2 SEMD98003SE R0.15 0.3 4 0.3 40 0~-0.012 h6 2 SEMD98004 R0.20 0.4 4 0.8 40 0~-0.012 h6 2 SEMD980043S R0.20 0.4 3 0.8 40 0~-0.012 h6 2 SEMD980043SE R0.20 0.4 3 0.8 40 0~-0.012 h6 2 SEMD98004E R0.20 0.4 4 0.8 40 0~-0.012 h6 2 SEMD98004H R6.0 0.4 4 0.8 40 0~-0.012 h6 2 SEMD98004S R0.20 0.4 4 0.4 40 0~-0.012 h6 2 SEMD98004SE R0.20 0.4 4 0.4 40 0~-0.012 h6 2 SEMD98005 R0.25 0.5 4 1 40 0~-0.012 h6 2 SEMD980053S R0.25 0.5 3 1 40 0~-0.012 h6 2 SEMD980053SE R0.25 0.5 3 1 40 0~-0.012 h6 2 SEMD98005E R0.25 0.5 4 1 40 0~-0.012 h6 2 SEMD98005H R6.0 0.5 4 1 40 0~-0.012 h6 2 SEMD98005S R0.25 0.5 4 0.5 40 0~-0.012 h6 2 SEMD98005SE R0.25 0.5 4 0.5 40 0~-0.012 h6 2 SEMD98006 R0.30 0.6 4 1.2 40 0~-0.012 h6 2 SEMD980063S R0.30 0.6 3 1.2 40 0~-0.012 h6 2 SEMD980063SE R0.30 0.6 3 1.2 40 0~-0.012 h6 2 SEMD98006E R0.30 0.6 4 1.2 40 0~-0.012 h6 2 SEMD98006H R6.0 0.6 4 1.2 40 0~-0.012 h6 2 SEMD98006S R0.30 0.6 4 0.6 40 0~-0.012 h6 2 SEMD98006SE R0.30 0.6 4 0.6 40 0~-0.012 h6 2 SEMD98007 R0.35 0.7 4 1.4 40 0~-0.012 h6 2 SEMD980073S R0.35 0.7 3 1.4 40 0~-0.012 h6 2 SEMD980073SE R0.35 0.7 3 1.4 40 0~-0.012 h6 2 SEMD98007E R0.35 0.7 4 1.4 40 0~-0.012 h6 2 SEMD98007H R6.0 0.7 4 1.4 40 0~-0.012 h6 2 SEMD98007S R0.35 0.7 4 0.7 40 0~-0.012 h6 2 SEMD98007SE R0.35 0.7 4 0.7 40 0~-0.012 h6 2 SEMD98008 R0.40 0.8 4 1.6 40 0~-0.012 h6 2 SEMD980083S R0.40 0.8 3 1.6 40 0~-0.012 h6 2 SEMD980083SE R0.40 0.8 3 1.6 40 0~-0.012 h6 2 SEMD98008E R0.40 0.8 4 1.6 40 0~-0.012 h6 2 SEMD98008H R6.0 0.8 4 1.6 40 0~-0.012 h6 2 SEMD98008S R0.40 0.8 4 0.8 40 0~-0.012 h6 2 SEMD98008SE R0.40 0.8 4 0.8 40 0~-0.012 h6 2 SEMD98009 R0.45 0.9 4 1.8 40 0~-0.012 h6 2 SEMD980093S R0.45 0.9 3 1.8 40 0~-0.012 h6 2 SEMD980093SE R0.45 0.9 3 1.8 40 0~-0.012 h6 2 SEMD98009E R0.45 0.9 4 1.8 40 0~-0.012 h6 2 SEMD98009H R6.0 0.9 4 1.8 40 0~-0.012 h6 2 SEMD98009S R0.45 0.9 4 0.9 40 0~-0.012 h6 2 SEMD98009SE R0.45 0.9 4 0.9 40 0~-0.012 h6 2 SEMD98010 R0.50 1 6 2.5 50 0~-0.012 h6 2 SEMD98010040 R0.50 1 6 1.5 40 0~-0.012 h6 2 SEMD98010040E R0.50 1 6 1.5 40 0~-0.012 h6 2 SEMD98010070 R0.50 1 6 2.5 70 0~-0.012 h6 2 SEMD98010070E R0.50 1 6 2.5 70 0~-0.012 h6 2 SEMD98010100 R0.50 1 6 2.5 100 0~-0.012 h6 2 SEMD98010100E R0.50 1 6 2.5 100 0~-0.012 h6 2 SEMD980103S R0.50 1 3 2.5 50 0~-0.012 h6 2 SEMD980103SE R0.50 1 3 2.5 50 0~-0.012 h6 2 SEMD980104S R0.50 1 4 2.5 50 0~-0.012 h6 2 SEMD980104SE R0.50 1 4 2.5 50 0~-0.012 h6 2 SEMD98010E R0.50 1 6 2.5 50 0~-0.012 h6 2 SEMD98010H R6.0 1 6 2.5 50 0~-0.012 h6 2 SEMD98012 R0.60 1.2 6 3 50 0~-0.012 h6 2 SEMD98012040 R0.60 1.2 6 2 40 0~-0.012 h6 2 SEMD98012040E R0.60 1.2 6 2 40 0~-0.012 h6 2 SEMD98012070 R0.60 1.2 6 3 70 0~-0.012 h6 2 SEMD98012070E R0.60 1.2 6 3 70 0~-0.012 h6 2 SEMD98012100 R0.60 1.2 6 3 100 0~-0.012 h6 2 SEMD98012100E R0.60 1.2 6 3 100 0~-0.012 h6 2 SEMD980123S R0.60 1.2 3 3 50 0~-0.012 h6 2 SEMD980123SE R0.60 1.2 3 3 50 0~-0.012 h6 2 SEMD980124S R0.60 1.2 4 3 50 0~-0.012 h6 2 SEMD980124SE R0.60 1.2 4 3 50 0~-0.012 h6 2 SEMD98012E R0.60 1.2 6 3 50 0~-0.012 h6 2 SEMD98012H R6.0 1.2 6 3 50 0~-0.012 h6 2 SEMD98015 R0.75 1.5 6 4 50 0~-0.012 h6 2 SEMD98015040 R0.75 1.5 6 2.5 40 0~-0.012 h6 2 SEMD98015040E R0.75 1.5 6 2.5 40 0~-0.012 h6 2 SEMD98015070 R0.75 1.5 6 4 70 0~-0.012 h6 2 SEMD98015070E R0.75 1.5 6 4 70 0~-0.012 h6 2 SEMD98015100 R0.75 1.5 6 4 100 0~-0.012 h6 2 SEMD98015100E R0.75 1.5 6 4 100 0~-0.012 h6 2 SEMD980153S R0.75 1.5 3 4 50 0~-0.012 h6 2 SEMD980153SE R0.75 1.5 3 4 50 0~-0.012 h6 2 SEMD980154S R0.75 1.5 4 4 50 0~-0.012 h6 2 SEMD980154SE R0.75 1.5 4 4 50 0~-0.012 h6 2 SEMD98015E R0.75 1.5 6 4 50 0~-0.012 h6 2 SEMD98015H R6.0 1.5 6 4 50 0~-0.012 h6 2 SEMD98020 R1.0 2 6 5 50 0~-0.012 h6 2 SEMD98020040 R1.0 2 6 3 40 0~-0.012 h6 2 SEMD98020040E R1.0 2 6 3 40 0~-0.012 h6 2 SEMD98020080 R1.0 2 6 5 80 0~-0.012 h6 2 SEMD98020080E R1.0 2 6 5 80 0~-0.012 h6 2 SEMD98020100 R1.0 2 6 5 100 0~-0.012 h6 2 SEMD98020100E R1.0 2 6 5 100 0~-0.012 h6 2 SEMD980203S R1.0 2 3 5 50 0~-0.012 h6 2 SEMD980203SE R1.0 2 3 5 50 0~-0.012 h6 2 SEMD980204S R1.0 2 4 5 50 0~-0.012 h6 2 SEMD980204SE R1.0 2 4 5 50 0~-0.012 h6 2 SEMD98020E R1.0 2 6 5 50 0~-0.012 h6 2 SEMD98020H R6.0 2 6 5 50 0~-0.012 h6 2 SEMD98025 R1.25 2.5 6 6 60 0~-0.012 h6 2 SEMD98025040 R1.25 2.5 6 4 40 0~-0.012 h6 2 SEMD98025040E R1.25 2.5 6 4 40 0~-0.012 h6 2 SEMD98025080 R1.25 2.5 6 6 80 0~-0.012 h6 2 SEMD98025080E R1.25 2.5 6 6 80 0~-0.012 h6 2 SEMD98025100 R1.25 2.5 6 6 100 0~-0.012 h6 2 SEMD98025100E R1.25 2.5 6 6 100 0~-0.012 h6 2 SEMD980253S R1.25 2.5 3 6 60 0~-0.012 h6 2 SEMD980253SE R1.25 2.5 3 6 60 0~-0.012 h6 2 SEMD980254S R1.25 2.5 4 6 60 0~-0.012 h6 2 SEMD980254SE R1.25 2.5 4 6 60 0~-0.012 h6 2 SEMD98025E R1.25 2.5 6 6 60 0~-0.012 h6 2 SEMD98025H R6.0 2.5 6 6 60 0~-0.012 h6 2 SEMD98030 R1.5 3 6 6 60 0~-0.012 h6 2 SEMD98030040 R1.5 3 6 4.5 40 0~-0.012 h6 2 SEMD98030040E R1.5 3 6 4.5 40 0~-0.012 h6 2 SEMD98030080 R1.5 3 6 6 80 0~-0.012 h6 2 SEMD98030080E R1.5 3 6 6 80 0~-0.012 h6 2 SEMD98030100 R1.5 3 6 6 100 0~-0.012 h6 2 SEMD98030100E R1.5 3 6 6 100 0~-0.012 h6 2 SEMD980303S R1.5 3 3 6 60 0~-0.012 h6 2 SEMD980303SE R1.5 3 3 6 60 0~-0.012 h6 2 SEMD980304S R1.5 3 4 6 60 0~-0.012 h6 2 SEMD980304SE R1.5 3 4 6 60 0~-0.012 h6 2 SEMD98030E R1.5 3 6 6 60 0~-0.012 h6 2 SEMD98030H R6.0 3 6 6 60 0~-0.012 h6 2 SEMD98035 R1.75 3.5 6 8 70 0~-0.012 h6 2 SEMD98035E R1.75 3.5 6 8 70 0~-0.012 h6 2 SEMD98040 R2.0 4 6 8 70 0~-0.012 h6 2 SEMD98040050 R2.0 4 6 6 50 0~-0.012 h6 2 SEMD98040050E R2.0 4 6 6 50 0~-0.012 h6 2 SEMD98040100 R2.0 4 6 8 100 0~-0.012 h6 2 SEMD980401004S R2.0 4 4 8 100 0~-0.012 h6 2 SEMD980401004SE R2.0 4 4 8 100 0~-0.012 h6 2 SEMD98040100E R2.0 4 6 8 100 0~-0.012 h6 2 SEMD98040120 R2.0 4 6 8 120 0~-0.012 h6 2 SEMD980401204S R2.0 4 4 8 120 0~-0.012 h6 2 SEMD980401204SE R2.0 4 4 8 120 0~-0.012 h6 2 SEMD98040120E R2.0 4 6 8 120 0~-0.012 h6 2 SEMD980404S R2.0 4 4 8 70 0~-0.012 h6 2 SEMD980404SE R2.0 4 4 8 70 0~-0.012 h6 2 SEMD98040E R2.0 4 6 8 70 0~-0.012 h6 2 SEMD98040H R6.0 4 6 8 70 0~-0.012 h6 2 SEMD98045 R2.25 4.5 6 9 80 0~-0.012 h6 2 SEMD98045E R2.25 4.5 6 9 80 0~-0.012 h6 2 SEMD98050 R2.5 5 6 10 80 0~-0.012 h6 2 SEMD98050060 R2.5 5 6 7.5 60 0~-0.012 h6 2 SEMD98050060E R2.5 5 6 7.5 60 0~-0.012 h6 2 SEMD980505S R2.5 5 5 10 80 0~-0.012 h6 2 SEMD980505SE R2.5 5 5 10 80 0~-0.012 h6 2 SEMD98050E R2.5 5 6 10 80 0~-0.012 h6 2 SEMD98050H R6.0 5 6 10 80 0~-0.012 h6 2 SEMD98055 R2.75 5.5 6 11 90 0~-0.012 h6 2 SEMD98055E R2.75 5.5 6 11 90 0~-0.012 h6 2 SEMD98060 R3.0 6 6 12 90 0~-0.012 h6 2 SEMD98060050 R3.0 6 6 9 50 0~-0.012 h6 2 SEMD98060050E R3.0 6 6 9 50 0~-0.012 h6 2 SEMD98060060 R3.0 6 6 9 60 0~-0.012 h6 2 SEMD98060060E R3.0 6 6 9 60 0~-0.012 h6 2 SEMD98060080 R3.0 6 6 9 80 0~-0.012 h6 2 SEMD98060080E R3.0 6 6 9 80 0~-0.012 h6 2 SEMD98060110 R3.0 6 6 12 110 0~-0.012 h6 2 SEMD98060110E R3.0 6 6 12 110 0~-0.012 h6 2 SEMD98060130 R3.0 6 6 12 130 0~-0.012 h6 2 SEMD98060130E R3.0 6 6 12 130 0~-0.012 h6 2 SEMD98060150 R3.0 6 6 12 150 0~-0.012 h6 2 SEMD98060150E R3.0 6 6 12 150 0~-0.012 h6 2 SEMD98060E R3.0 6 6 12 90 0~-0.012 h6 2 SEMD98060H R6.0 6 6 12 90 0~-0.012 h6 2 SEMD98065 R3.25 6.5 8 13 90 0~-0.015 h6 2 SEMD98065E R3.25 6.5 8 13 90 0~-0.015 h6 2 SEMD98070 R3.5 7 8 14 90 0~-0.015 h6 2 SEMD98070E R3.5 7 8 14 90 0~-0.015 h6 2 SEMD98080 R4.0 8 8 14 100 0~-0.015 h6 2 SEMD98080050 R4.0 8 8 12 50 0~-0.015 h6 2 SEMD98080050E R4.0 8 8 12 50 0~-0.015 h6 2 SEMD98080060 R4.0 8 8 12 60 0~-0.015 h6 2 SEMD98080060E R4.0 8 8 12 60 0~-0.015 h6 2 SEMD98080080 R4.0 8 8 12 80 0~-0.015 h6 2 SEMD98080080E R4.0 8 8 12 80 0~-0.015 h6 2 SEMD98080090 R4.0 8 8 12 90 0~-0.015 h6 2 SEMD98080090E R4.0 8 8 12 90 0~-0.015 h6 2 SEMD98080130 R4.0 8 8 14 130 0~-0.015 h6 2 SEMD98080130E R4.0 8 8 14 130 0~-0.015 h6 2 SEMD98080150 R4.0 8 8 14 150 0~-0.015 h6 2 SEMD98080150E R4.0 8 8 14 150 0~-0.015 h6 2 SEMD98080E R4.0 8 8 14 100 0~-0.015 h6 2 SEMD98080H R6.0 8 8 14 100 0~-0.015 h6 2 SEMD98085 R4.25 8.5 10 16 100 0~-0.015 h6 2 SEMD98085E R4.25 8.5 10 16 100 0~-0.015 h6 2 SEMD98090 R4.5 9 10 18 100 0~-0.015 h6 2 SEMD98090E R4.5 9 10 18 100 0~-0.015 h6 2 SEMD98100 R5.0 10 10 18 100 0~-0.015 h6 2 SEMD98100050 R5.0 10 10 15 50 0~-0.015 h6 2 SEMD98100050E R5.0 10 10 15 50 0~-0.015 h6 2 SEMD98100060 R5.0 10 10 15 60 0~-0.015 h6 2 SEMD98100060E R5.0 10 10 15 60 0~-0.015 h6 2 SEMD98100080 R5.0 10 10 15 80 0~-0.015 h6 2 SEMD98100080E R5.0 10 10 15 80 0~-0.015 h6 2 SEMD98100090 R5.0 10 10 15 90 0~-0.015 h6 2 SEMD98100090E R5.0 10 10 15 90 0~-0.015 h6 2 SEMD98100130 R5.0 10 10 18 130 0~-0.015 h6 2 SEMD98100130E R5.0 10 10 18 130 0~-0.015 h6 2 SEMD98100150 R5.0 10 10 18 150 0~-0.015 h6 2 SEMD98100150E R5.0 10 10 18 150 0~-0.015 h6 2 SEMD98100180 R5.0 10 10 18 180 0~-0.015 h6 2 SEMD98100180E R5.0 10 10 18 180 0~-0.015 h6 2 SEMD98100200 R5.0 10 10 18 200 0~-0.015 h6 2 SEMD98100200E R5.0 10 10 18 200 0~-0.015 h6 2 SEMD98100E R5.0 10 10 18 100 0~-0.015 h6 2 SEMD98100H R6.0 10 10 18 100 0~-0.015 h6 2 SEMD98110 R5.5 11 12 20 100 0~-0.015 h6 2 SEMD98110E R5.5 11 12 20 100 0~-0.015 h6 2 SEMD98120 R6.0 12 12 22 110 0~-0.015 h6 2 SEMD98120060 R6.0 12 12 18 60 0~-0.015 h6 2 SEMD98120060E R6.0 12 12 18 60 0~-0.015 h6 2 SEMD98120080 R6.0 12 12 18 80 0~-0.015 h6 2 SEMD98120080E R6.0 12 12 18 80 0~-0.015 h6 2 SEMD98120090 R6.0 12 12 18 90 0~-0.015 h6 2 SEMD98120090E R6.0 12 12 18 90 0~-0.015 h6 2 SEMD98120100 R6.0 12 12 18 100 0~-0.015 h6 2 SEMD98120100E R6.0 12 12 18 100 0~-0.015 h6 2 SEMD98120130 R6.0 12 12 22 130 0~-0.015 h6 2 SEMD98120130E R6.0 12 12 22 130 0~-0.015 h6 2 SEMD98120150 R6.0 12 12 22 150 0~-0.015 h6 2 SEMD98120150E R6.0 12 12 22 150 0~-0.015 h6 2 SEMD98120180 R6.0 12 12 22 180 0~-0.015 h6 2 SEMD98120180E R6.0 12 12 22 180 0~-0.015 h6 2 SEMD98120200 R6.0 12 12 22 200 0~-0.015 h6 2 SEMD98120200E R6.0 12 12 22 200 0~-0.015 h6 2 SEMD98120220 R6.0 12 12 22 200 0~-0.015 h6 2 SEMD98120E R6.0 12 12 22 110 0~-0.015 h6 2 SEMD98120H R6.0 12 12 22 110 0~-0.015 h6 2 SEMD98130 R6.5 13 12 24 100 0~-0.015 h6 2 SEMD98130E R6.5 13 12 24 100 0~-0.015 h6 2 SEMD98140 R7.0 14 12 26 100 0~-0.015 h6 2 SEMD9814014S R7.0 14 14 26 100 0~-0.015 h6 2 SEMD9814014SE R7.0 14 14 26 100 0~-0.015 h6 2 SEMD9814016S R7.0 14 16 26 100 0~-0.015 h6 2 SEMD9814016SE R7.0 14 16 26 100 0~-0.015 h6 2 SEMD98140E R7.0 14 12 26 100 0~-0.015 h6 2 SEMD98150 R7.5 15 16 28 140 0~-0.015 h6 2 SEMD98150E R7.5 15 16 28 140 0~-0.015 h6 2 SEMD98160 R8.0 16 16 30 150 0~-0.015 h6 2 SEMD98160100 R8.0 16 16 24 100 0~-0.015 h6 2 SEMD98160100E R8.0 16 16 24 100 0~-0.015 h6 2 SEMD98160130 R8.0 16 16 24 130 0~-0.015 h6 2 SEMD98160130E R8.0 16 16 24 130 0~-0.015 h6 2 SEMD98160180 R8.0 16 16 30 180 0~-0.015 h6 2 SEMD98160180E R8.0 16 16 30 180 0~-0.015 h6 2 SEMD98160200 R8.0 16 16 30 200 0~-0.015 h6 2 SEMD98160200E R8.0 16 16 30 200 0~-0.015 h6 2 SEMD98160E R8.0 16 16 30 150 0~-0.015 h6 2 SEMD98180 R9.0 18 16 34 150 0~-0.015 h6 2 SEMD9818018S R9.0 18 18 34 150 0~-0.015 h6 2 SEMD9818018SE R9.0 18 18 34 150 0~-0.015 h6 2 SEMD98180E R9.0 18 16 34 150 0~-0.015 h6 2 SEMD98200 R10.0 20 20 38 150 0~-0.015 h6 2 SEMD98200100 R10.0 20 20 30 100 0~-0.015 h6 2 SEMD98200100E R10.0 20 20 30 100 0~-0.015 h6 2 SEMD98200130 R10.0 20 20 30 130 0~-0.015 h6 2 SEMD98200130E R10.0 20 20 30 130 0~-0.015 h6 2 SEMD98200200 R10.0 20 20 38 200 0~-0.015 h6 2 SEMD98200200E R10.0 20 20 38 200 0~-0.015 h6 2 SEMD98200E R10.0 20 20 38 150 0~-0.015 h6 2 SEMD98250 R12.5 25 25 50 180 0~-0.015 h6 2 SEMD98250120 R12.5 25 25 50 120 0~-0.015 h6 2 SEMD98250120E R12.5 25 25 50 120 0~-0.015 h6 2 SEMD98250E R12.5 25 25 50 180 0~-0.015 h6 2
Ống kẹp dao, Collet kẹp dao ER20S, SEALED ER COLLET-INCH TYPE ER20S

Liên hệ

Mã sản phẩm: ER20S

ER20S EDP No. CLAMPINGCAPACITY 200108S 1/8 200532S 5/32 200316S 3/16 200732S 7/32 200104S 1/4 200932S 9/32 200516S 5/16 201132S 11/32 200308S 3/8 201332S 13/32 200716S 7/16 201532S 15/32 200102S 1/2 ER20S13S STANDARD SET Ø1/8” to 1/2” 13pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay hợp kim YG SEME70, Dao phay trụ YG SEME70

Liên hệ

Mã sản phẩm: SEME70

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle SEME7001003 1 6 3 60 0~0.030 h6 2 SEME7001003E 1 6 3 60 0~0.030 h6 2 SEME7001004 1 6 4 60 0~0.030 h6 2 SEME7001004E 1 6 4 60 0~0.030 h6 2 SEME7001005 1 6 5 60 0~0.030 h6 2 SEME7001005E 1 6 5 60 0~0.030 h6 2 SEME7001006 1 6 6 60 0~0.030 h6 2 SEME7001006E 1 6 6 60 0~0.030 h6 2 SEME7001007 1 6 7 60 0~0.030 h6 2 SEME7001007E 1 6 7 60 0~0.030 h6 2 SEME7001008 1 6 8 60 0~0.030 h6 2 SEME7001008E 1 6 8 60 0~0.030 h6 2 SEME7001010 1 6 10 60 0~0.030 h6 2 SEME7001010E 1 6 10 60 0~0.030 h6 2 SEME7001012 1 6 12 60 0~0.030 h6 2 SEME7001012E 1 6 12 60 0~0.030 h6 2 SEME7001204 1.2 6 4 60 0~0.030 h6 2 SEME7001204E 1.2 6 4 60 0~0.030 h6 2 SEME7001206 1.2 6 6 60 0~0.030 h6 2 SEME7001206E 1.2 6 6 60 0~0.030 h6 2 SEME7001208 1.2 6 8 60 0~0.030 h6 2 SEME7001208E 1.2 6 8 60 0~0.030 h6 2 SEME7001210 1.2 6 10 60 0~0.030 h6 2 SEME7001210E 1.2 6 10 60 0~0.030 h6 2 SEME7001212 1.2 6 12 60 0~0.030 h6 2 SEME7001212E 1.2 6 12 60 0~0.030 h6 2 SEME7001506 1.5 6 6 60 0~0.030 h6 2 SEME7001506E 1.5 6 6 60 0~0.030 h6 2 SEME7001508 1.5 6 8 60 0~0.030 h6 2 SEME7001508E 1.5 6 8 60 0~0.030 h6 2 SEME7001510 1.5 6 10 60 0~0.030 h6 2 SEME7001510E 1.5 6 10 60 0~0.030 h6 2 SEME7001512 1.5 6 12 60 0~0.030 h6 2 SEME7001512E 1.5 6 12 60 0~0.030 h6 2 SEME7001514 1.5 6 14 60 0~0.030 h6 2 SEME7001514E 1.5 6 14 60 0~0.030 h6 2 SEME7001516 1.5 6 16 60 0~0.030 h6 2 SEME7001516E 1.5 6 16 60 0~0.030 h6 2 SEME7002008 2 6 8 60 0~0.030 h6 2 SEME7002008E 2 6 8 60 0~0.030 h6 2 SEME7002010 2 6 10 60 0~0.030 h6 2 SEME7002010E 2 6 10 60 0~0.030 h6 2 SEME7002012 2 6 12 60 0~0.030 h6 2 SEME7002012E 2 6 12 60 0~0.030 h6 2 SEME7002014 2 6 14 60 0~0.030 h6 2 SEME7002014E 2 6 14 60 0~0.030 h6 2 SEME7002016 2 6 16 60 0~0.030 h6 2 SEME7002016E 2 6 16 60 0~0.030 h6 2 SEME7002510 2.5 6 10 60 0~0.030 h6 2 SEME7002510E 2.5 6 10 60 0~0.030 h6 2 SEME7002512 2.5 6 12 60 0~0.030 h6 2 SEME7002512E 2.5 6 12 60 0~0.030 h6 2 SEME7002516 2.5 6 16 60 0~0.030 h6 2 SEME7002516E 2.5 6 16 60 0~0.030 h6 2 SEME7002520 2.5 6 20 60 0~0.030 h6 2 SEME7002520E 2.5 6 20 60 0~0.030 h6 2 SEME7002526 2.5 6 26 60 0~0.030 h6 2 SEME7002526E 2.5 6 26 60 0~0.030 h6 2 SEME7003010 3 6 10 70 0~0.030 h6 2 SEME7003010E 3 6 10 70 0~0.030 h6 2 SEME7003012 3 6 12 70 0~0.030 h6 2 SEME7003012E 3 6 12 70 0~0.030 h6 2 SEME7003014 3 6 14 70 0~0.030 h6 2 SEME7003014E 3 6 14 70 0~0.030 h6 2 SEME7003016 3 6 16 70 0~0.030 h6 2 SEME70030163S 3 3 16 100 0~0.030 h6 2 SEME70030163SE 3 3 16 100 0~0.030 h6 2 SEME7003016E 3 6 16 70 0~0.030 h6 2 SEME7003020 3 6 20 70 0~0.030 h6 2 SEME7003020E 3 6 20 70 0~0.030 h6 2 SEME7003026 3 6 26 70 0~0.030 h6 2 SEME7003026E 3 6 26 70 0~0.030 h6 2 SEME7003030 3 6 30 70 0~0.030 h6 2 SEME7003030E 3 6 30 70 0~0.030 h6 2 SEME7004012 4 6 12 70 0~0.030 h6 2 SEME7004012E 4 6 12 70 0~0.030 h6 2 SEME7004016 4 6 16 70 0~0.030 h6 2 SEME7004016E 4 6 16 70 0~0.030 h6 2 SEME7004020 4 6 20 70 0~0.030 h6 2 SEME70040204S 4 4 20 100 0~0.030 h6 2 SEME70040204SE 4 4 20 100 0~0.030 h6 2 SEME7004020E 4 6 20 70 0~0.030 h6 2 SEME7004026 4 6 26 70 0~0.030 h6 2 SEME7004026E 4 6 26 70 0~0.030 h6 2 SEME7004030 4 6 30 70 0~0.030 h6 2 SEME7004030E 4 6 30 70 0~0.030 h6 2 SEME7005020 5 6 20 70 0~0.030 h6 2 SEME7005020E 5 6 20 70 0~0.030 h6 2 SEME7005025 5 6 25 70 0~0.030 h6 2 SEME7005025100 5 6 25 100 0~0.030 h6 2 SEME7005025100E 5 6 25 100 0~0.030 h6 2 SEME7005025E 5 6 25 70 0~0.030 h6 2 SEME7005030 5 6 30 80 0~0.030 h6 2 SEME7005030E 5 6 30 80 0~0.030 h6 2 SEME7005035 5 6 35 90 0~0.030 h6 2 SEME7005035E 5 6 35 90 0~0.030 h6 2 SEME7005040 5 6 40 100 0~0.030 h6 2 SEME7005040E 5 6 40 100 0~0.030 h6 2 SEME7006015 6 6 15 60 0~0.030 h6 2 SEME7006015080 6 6 15 80 0~0.030 h6 2 SEME7006015080E 6 6 15 80 0~0.030 h6 2 SEME7006015E 6 6 15 60 0~0.030 h6 2 SEME7006020 6 6 20 70 0~0.030 h6 2 SEME7006020090 6 6 20 90 0~0.030 h6 2 SEME7006020090E 6 6 20 90 0~0.030 h6 2 SEME7006020E 6 6 20 70 0~0.030 h6 2 SEME7006025 6 6 25 75 0~0.030 h6 2 SEME7006025E 6 6 25 75 0~0.030 h6 2 SEME7006030 6 6 30 80 0~0.030 h6 2 SEME7006030100 6 6 30 100 0~0.030 h6 2 SEME7006030100E 6 6 30 100 0~0.030 h6 2 SEME7006030150 6 6 30 150 0~0.030 h6 2 SEME7006030150E 6 6 30 150 0~0.030 h6 2 SEME7006030E 6 6 30 80 0~0.030 h6 2 SEME7006035 6 6 35 90 0~0.030 h6 2 SEME7006035E 6 6 35 90 0~0.030 h6 2 SEME7006040 6 6 40 90 0~0.030 h6 2 SEME7006040120 6 6 40 120 0~0.030 h6 2 SEME7006040120E 6 6 40 120 0~0.030 h6 2 SEME7006040E 6 6 40 90 0~0.030 h6 2 SEME7006045 6 6 45 150 0~0.030 h6 2 SEME7006045E 6 6 45 150 0~0.030 h6 2 SEME7008025 8 8 25 80 0~0.030 h6 2 SEME7008025E 8 8 25 80 0~0.030 h6 2 SEME7008030 8 8 30 80 0~0.030 h6 2 SEME7008030100 8 8 30 100 0~0.030 h6 2 SEME7008030100E 8 8 30 100 0~0.030 h6 2 SEME7008030E 8 8 30 80 0~0.030 h6 2 SEME7008035 8 8 35 90 0~0.030 h6 2 SEME7008035E 8 8 35 90 0~0.030 h6 2 SEME7008040 8 8 40 90 0~0.030 h6 2 SEME7008040120 8 8 40 120 0~0.030 h6 2 SEME7008040120E 8 8 40 120 0~0.030 h6 2 SEME7008040150 8 8 40 150 0~0.030 h6 2 SEME7008040150E 8 8 40 150 0~0.030 h6 2 SEME7008040E 8 8 40 90 0~0.030 h6 2 SEME7008045 8 8 45 100 0~0.030 h6 2 SEME7008045E 8 8 45 100 0~0.030 h6 2 SEME7008050 8 8 50 100 0~0.030 h6 2 SEME7008050150 8 8 50 150 0~0.030 h6 2 SEME7008050150E 8 8 50 150 0~0.030 h6 2 SEME7008050E 8 8 50 100 0~0.030 h6 2 SEME7010030 10 10 30 80 0~0.030 h6 2 SEME7010030100 10 10 30 100 0~0.030 h6 2 SEME7010030100E 10 10 30 100 0~0.030 h6 2 SEME7010030E 10 10 30 80 0~0.030 h6 2 SEME7010035 10 10 35 90 0~0.030 h6 2 SEME7010035E 10 10 35 90 0~0.030 h6 2 SEME7010040 10 10 40 90 0~0.030 h6 2 SEME7010040120 10 10 40 120 0~0.030 h6 2 SEME7010040120E 10 10 40 120 0~0.030 h6 2 SEME7010040E 10 10 40 90 0~0.030 h6 2 SEME7010045 10 10 45 100 0~0.030 h6 2 SEME7010045E 10 10 45 100 0~0.030 h6 2 SEME7010050 10 10 50 100 0~0.030 h6 2 SEME7010050150 10 10 50 150 0~0.030 h6 2 SEME7010050150E 10 10 50 150 0~0.030 h6 2 SEME7010050200 10 10 50 200 0~0.030 h6 2 SEME7010050200E 10 10 50 200 0~0.030 h6 2 SEME7010050E 10 10 50 100 0~0.030 h6 2 SEME7010055 10 10 55 150 0~0.030 h6 2 SEME7010055E 10 10 55 150 0~0.030 h6 2 SEME7010060 10 10 60 110 0~0.030 h6 2 SEME7010060200 10 10 60 200 0~0.030 h6 2 SEME7010060200E 10 10 60 200 0~0.030 h6 2 SEME7010060E 10 10 60 110 0~0.030 h6 2 SEME7012035 12 12 35 90 0~0.030 h6 2 SEME7012035E 12 12 35 90 0~0.030 h6 2 SEME7012040 12 12 40 100 0~0.030 h6 2 SEME7012040120 12 12 40 120 0~0.030 h6 2 SEME7012040120E 12 12 40 120 0~0.030 h6 2 SEME7012040E 12 12 40 100 0~0.030 h6 2 SEME7012045 12 12 45 130 0~0.030 h6 2 SEME7012045E 12 12 45 130 0~0.030 h6 2 SEME7012050 12 12 50 100 0~0.030 h6 2 SEME7012050150 12 12 50 150 0~0.030 h6 2 SEME7012050150E 12 12 50 150 0~0.030 h6 2 SEME7012050E 12 12 50 100 0~0.030 h6 2 SEME7012055 12 12 55 110 0~0.030 h6 2 SEME7012055E 12 12 55 110 0~0.030 h6 2 SEME7012060 12 12 60 110 0~0.030 h6 2 SEME7012060150 12 12 60 150 0~0.030 h6 2 SEME7012060150E 12 12 60 150 0~0.030 h6 2 SEME7012060200 12 12 60 200 0~0.030 h6 2 SEME7012060200E 12 12 60 200 0~0.030 h6 2 SEME7012060E 12 12 60 110 0~0.030 h6 2 SEME7012065 12 12 65 150 0~0.030 h6 2 SEME7012065E 12 12 65 150 0~0.030 h6 2 SEME7012070 12 12 70 120 0~0.030 h6 2 SEME7012070200 12 12 70 200 0~0.030 h6 2 SEME7012070200E 12 12 70 200 0~0.030 h6 2 SEME7012070E 12 12 70 120 0~0.030 h6 2 SEME7014050 14 16 50 110 0~0.030 h6 2 SEME7014050E 14 16 50 110 0~0.030 h6 2 SEME7014060 14 16 60 150 0~0.030 h6 2 SEME7014060E 14 16 60 150 0~0.030 h6 2 SEME70160110 16 16 110 200 0~0.030 h6 2 SEME70160110E 16 16 110 200 0~0.030 h6 2 SEME70160120 16 16 120 250 0~0.030 h6 2 SEME70160120E 16 16 120 250 0~0.030 h6 2 SEME7016040 16 16 40 150 0~0.030 h6 2 SEME7016040E 16 16 40 150 0~0.030 h6 2 SEME7016050 16 16 50 110 0~0.030 h6 2 SEME7016050150 16 16 50 150 0~0.030 h6 2 SEME7016050150E 16 16 50 150 0~0.030 h6 2 SEME7016050E 16 16 50 110 0~0.030 h6 2 SEME7016060 16 16 60 120 0~0.030 h6 2 SEME7016060E 16 16 60 120 0~0.030 h6 2 SEME7016070 16 16 70 130 0~0.030 h6 2 SEME7016070150 16 16 70 150 0~0.030 h6 2 SEME7016070150E 16 16 70 150 0~0.030 h6 2 SEME7016070200 16 16 70 200 0~0.030 h6 2 SEME7016070200E 16 16 70 200 0~0.030 h6 2 SEME7016070E 16 16 70 130 0~0.030 h6 2 SEME7016080 16 16 80 150 0~0.030 h6 2 SEME7016080E 16 16 80 150 0~0.030 h6 2 SEME7016090 16 16 90 150 0~0.030 h6 2 SEME7016090E 16 16 90 150 0~0.030 h6 2 SEME70180100 18 20 100 200 0~0.030 h6 2 SEME70180100E 18 20 100 200 0~0.030 h6 2 SEME7018050 18 20 50 120 0~0.030 h6 2 SEME7018050E 18 20 50 120 0~0.030 h6 2 SEME7018070 18 20 70 130 0~0.030 h6 2 SEME7018070E 18 20 70 130 0~0.030 h6 2 SEME70200110 20 20 110 200 0~0.030 h6 2 SEME70200110E 20 20 110 200 0~0.030 h6 2 SEME70200120 20 20 120 250 0~0.030 h6 2 SEME70200120E 20 20 120 250 0~0.030 h6 2 SEME7020050 20 20 50 110 0~0.030 h6 2 SEME7020050150 20 20 50 150 0~0.030 h6 2 SEME7020050150E 20 20 50 150 0~0.030 h6 2 SEME7020050E 20 20 50 110 0~0.030 h6 2 SEME7020060 20 20 60 130 0~0.030 h6 2 SEME7020060E 20 20 60 130 0~0.030 h6 2 SEME7020070 20 20 70 130 0~0.030 h6 2 SEME7020070E 20 20 70 130 0~0.030 h6 2 SEME7020080 20 20 80 150 0~0.030 h6 2 SEME7020080E 20 20 80 150 0~0.030 h6 2 SEME7020090 20 20 90 150 0~0.030 h6 2 SEME7020090200 20 20 90 200 0~0.030 h6 2 SEME7020090200E 20 20 90 200 0~0.030 h6 2 SEME7020090E 20 20 90 150 0~0.030 h6 2 SEME70220110 22 20 110 200 0~0.030 h6 2 SEME70220110E 22 20 110 200 0~0.030 h6 2 SEME7022075 22 20 75 150 0~0.030 h6 2 SEME7022075E 22 20 75 150 0~0.030 h6 2 SEME70250110 25 25 110 200 0~0.030 h6 2 SEME70250110E 25 25 110 200 0~0.030 h6 2 SEME70250120 25 25 120 250 0~0.030 h6 2 SEME70250120E 25 25 120 250 0~0.030 h6 2 SEME7025070 25 25 70 150 0~0.030 h6 2 SEME7025070E 25 25 70 150 0~0.030 h6 2 SEME7025090 25 25 90 150 0~0.030 h6 2 SEME7025090E 25 25 90 150 0~0.030 h6 2
Ống kẹp dao, Collet kẹp dao ER25S, SEALED ER COLLET-INCH TYPE ER25S

Liên hệ

Mã sản phẩm: ER25S

ER25S EDP No. CLAMPINGCAPACITY 250108S 1/8 250532S 5/32 250316S 3/16 250732S 7/32 250104S 1/4 250932S 9/32 250516S 5/16 251132S 11/32 250308S 3/8 251332S 13/32 250716S 7/16 251532S 15/32 250102S 1/2 251732S 17/32 250916S 9/16 251932S 19/32 250508S 5/8 ER20S13S STANDARD SET Ø1/8” to 1/2” 13pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay hợp kim YG SEME72, Dao phay trụ YG SEME72

Liên hệ

Mã sản phẩm: SEME72

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle SEME7201003 1 6 3 60 0~-0.030 h6 4 SEME7201003E 1 6 3 60 0~-0.030 h6 4 SEME7201004 1 6 4 60 0~-0.030 h6 4 SEME7201004E 1 6 4 60 0~-0.030 h6 4 SEME7201005 1 6 5 60 0~-0.030 h6 4 SEME7201005E 1 6 5 60 0~-0.030 h6 4 SEME7201006 1 6 6 60 0~-0.030 h6 4 SEME7201006E 1 6 6 60 0~-0.030 h6 4 SEME7201007 1 6 7 60 0~-0.030 h6 4 SEME7201007E 1 6 7 60 0~-0.030 h6 4 SEME7201008 1 6 8 60 0~-0.030 h6 4 SEME7201008E 1 6 8 60 0~-0.030 h6 4 SEME7201010 1 6 10 60 0~-0.030 h6 4 SEME7201010E 1 6 10 60 0~-0.030 h6 4 SEME7201012 1 6 12 60 0~-0.030 h6 4 SEME7201012E 1 6 12 60 0~-0.030 h6 4 SEME7201204 1.2 6 4 60 0~-0.030 h6 4 SEME7201204E 1.2 6 4 60 0~-0.030 h6 4 SEME7201206 1.2 6 6 60 0~-0.030 h6 4 SEME7201206E 1.2 6 6 60 0~-0.030 h6 4 SEME7201208 1.2 6 8 60 0~-0.030 h6 4 SEME7201208E 1.2 6 8 60 0~-0.030 h6 4 SEME7201210 1.2 6 10 60 0~-0.030 h6 4 SEME7201210E 1.2 6 10 60 0~-0.030 h6 4 SEME7201212 1.2 6 12 60 0~-0.030 h6 4 SEME7201212E 1.2 6 12 60 0~-0.030 h6 4 SEME7201506 1.5 6 6 60 0~-0.030 h6 4 SEME7201506E 1.5 6 6 60 0~-0.030 h6 4 SEME7201508 1.5 6 8 60 0~-0.030 h6 4 SEME7201508E 1.5 6 8 60 0~-0.030 h6 4 SEME7201510 1.5 6 10 60 0~-0.030 h6 4 SEME7201510E 1.5 6 10 60 0~-0.030 h6 4 SEME7201512 1.5 6 12 60 0~-0.030 h6 4 SEME7201512E 1.5 6 12 60 0~-0.030 h6 4 SEME7201514 1.5 6 14 60 0~-0.030 h6 4 SEME7201514E 1.5 6 14 60 0~-0.030 h6 4 SEME7201516 1.5 6 16 60 0~-0.030 h6 4 SEME7201516E 1.5 6 16 60 0~-0.030 h6 4 SEME7202008 2 6 8 60 0~-0.030 h6 4 SEME7202008E 2 6 8 60 0~-0.030 h6 4 SEME7202010 2 6 10 60 0~-0.030 h6 4 SEME7202010E 2 6 10 60 0~-0.030 h6 4 SEME7202012 2 6 12 60 0~-0.030 h6 4 SEME7202012E 2 6 12 60 0~-0.030 h6 4 SEME7202014 2 6 14 60 0~-0.030 h6 4 SEME7202014E 2 6 14 60 0~-0.030 h6 4 SEME7202016 2 6 16 60 0~-0.030 h6 4 SEME7202016E 2 6 16 60 0~-0.030 h6 4 SEME7202510 2.5 6 10 60 0~-0.030 h6 4 SEME7202510E 2.5 6 10 60 0~-0.030 h6 4 SEME7202512 2.5 6 12 60 0~-0.030 h6 4 SEME7202512E 2.5 6 12 60 0~-0.030 h6 4 SEME7202516 2.5 6 16 60 0~-0.030 h6 4 SEME7202516E 2.5 6 16 60 0~-0.030 h6 4 SEME7202520 2.5 6 20 60 0~-0.030 h6 4 SEME7202520E 2.5 6 20 60 0~-0.030 h6 4 SEME7202526 2.5 6 26 60 0~-0.030 h6 4 SEME7202526E 2.5 6 26 60 0~-0.030 h6 4 SEME7203010 3 6 10 70 0~-0.030 h6 4 SEME7203010 3 6 12 70 0~-0.030 h6 4 SEME7203010E 3 6 12 70 0~-0.030 h6 4 SEME7203012 3 6 12 70 0~-0.030 h6 4 SEME7203012 3 6 14 70 0~-0.030 h6 4 SEME7203012E 3 6 14 70 0~-0.030 h6 4 SEME7203014 3 3 16 100 0~-0.030 h6 4 SEME7203014 3 6 14 70 0~-0.030 h6 4 SEME7203014E 3 3 16 100 0~-0.030 h6 4 SEME7203016 3 6 16 70 0~-0.030 h6 4 SEME72030163S 3 3 16 100 0~-0.030 h6 4 SEME72030163S 3 6 10 70 0~-0.030 h6 4 SEME72030163SE 3 6 10 70 0~-0.030 h6 4 SEME7203016E 3 6 16 70 0~-0.030 h6 4 SEME7203020 3 6 20 70 0~-0.030 h6 4 SEME7203020E 3 6 20 70 0~-0.030 h6 4 SEME7203026 3 6 26 70 0~-0.030 h6 4 SEME7203026E 3 6 26 70 0~-0.030 h6 4 SEME7203030 3 6 30 70 0~-0.030 h6 4 SEME7203030E 3 6 30 70 0~-0.030 h6 4 SEME7204012 4 6 12 70 0~-0.030 h6 4 SEME7204012 4 6 16 70 0~-0.030 h6 4 SEME7204012E 4 6 16 70 0~-0.030 h6 4 SEME7204016 4 4 20 100 0~-0.030 h6 4 SEME7204016 4 6 16 70 0~-0.030 h6 4 SEME7204016E 4 4 20 100 0~-0.030 h6 4 SEME7204020 4 6 20 70 0~-0.030 h6 4 SEME72040204S 4 4 20 100 0~-0.030 h6 4 SEME72040204S 4 6 12 70 0~-0.030 h6 4 SEME72040204SE 4 6 12 70 0~-0.030 h6 4 SEME7204020E 4 6 20 70 0~-0.030 h6 4 SEME7204026 4 6 26 70 0~-0.030 h6 4 SEME7204026E 4 6 26 70 0~-0.030 h6 4 SEME7204030 4 6 30 70 0~-0.030 h6 4 SEME7204030E 4 6 30 70 0~-0.030 h6 4 SEME7205020 5 6 20 70 0~-0.030 h6 4 SEME7205020E 5 6 20 70 0~-0.030 h6 4 SEME7205025 5 6 25 100 0~-0.030 h6 4 SEME7205025 5 6 25 70 0~-0.030 h6 4 SEME7205025100 5 6 25 100 0~-0.030 h6 4 SEME7205025100 5 6 25 70 0~-0.030 h6 4 SEME7205025100E 5 6 25 70 0~-0.030 h6 4 SEME7205025E 5 6 25 100 0~-0.030 h6 4 SEME7205030 5 6 30 80 0~-0.030 h6 4 SEME7205030E 5 6 30 80 0~-0.030 h6 4 SEME7205035 5 6 35 90 0~-0.030 h6 4 SEME7205035E 5 6 35 90 0~-0.030 h6 4 SEME7205040 5 6 40 100 0~-0.030 h6 4 SEME7205040E 5 6 40 100 0~-0.030 h6 4 SEME7206015 6 6 15 60 0~-0.030 h6 4 SEME7206015 6 6 15 80 0~-0.030 h6 4 SEME7206015080 6 6 15 60 0~-0.030 h6 4 SEME7206015080 6 6 15 80 0~-0.030 h6 4 SEME7206015080E 6 6 15 60 0~-0.030 h6 4 SEME7206015E 6 6 15 80 0~-0.030 h6 4 SEME7206020 6 6 20 70 0~-0.030 h6 4 SEME7206020 6 6 20 90 0~-0.030 h6 4 SEME7206020090 6 6 20 70 0~-0.030 h6 4 SEME7206020090 6 6 20 90 0~-0.030 h6 4 SEME7206020090E 6 6 20 70 0~-0.030 h6 4 SEME7206020E 6 6 20 90 0~-0.030 h6 4 SEME7206025 6 6 25 75 0~-0.030 h6 4 SEME7206025E 6 6 25 75 0~-0.030 h6 4 SEME7206030 6 6 30 100 0~-0.030 h6 4 SEME7206030 6 6 30 80 0~-0.030 h6 4 SEME7206030100 6 6 30 100 0~-0.030 h6 4 SEME7206030100 6 6 30 150 0~-0.030 h6 4 SEME7206030100E 6 6 30 150 0~-0.030 h6 4 SEME7206030150 6 6 30 150 0~-0.030 h6 4 SEME7206030150 6 6 30 80 0~-0.030 h6 4 SEME7206030150E 6 6 30 80 0~-0.030 h6 4 SEME7206030E 6 6 30 100 0~-0.030 h6 4 SEME7206035 6 6 35 90 0~-0.030 h6 4 SEME7206035E 6 6 35 90 0~-0.030 h6 4 SEME7206040 6 6 40 120 0~-0.030 h6 4 SEME7206040 6 6 40 90 0~-0.030 h6 4 SEME7206040120 6 6 40 120 0~-0.030 h6 4 SEME7206040120 6 6 40 90 0~-0.030 h6 4 SEME7206040120E 6 6 40 90 0~-0.030 h6 4 SEME7206040E 6 6 40 120 0~-0.030 h6 4 SEME7206045 6 6 45 150 0~-0.030 h6 4 SEME7206045E 6 6 45 150 0~-0.030 h6 4 SEME7208025 8 8 25 80 0~-0.030 h6 4 SEME7208025E 8 8 25 80 0~-0.030 h6 4 SEME7208030 8 8 30 100 0~-0.030 h6 4 SEME7208030 8 8 30 80 0~-0.030 h6 4 SEME7208030100 8 8 30 100 0~-0.030 h6 4 SEME7208030100 8 8 30 80 0~-0.030 h6 4 SEME7208030100E 8 8 30 80 0~-0.030 h6 4 SEME7208030E 8 8 30 100 0~-0.030 h6 4 SEME7208035 8 8 35 90 0~-0.030 h6 4 SEME7208035E 8 8 35 90 0~-0.030 h6 4 SEME7208040 8 8 40 120 0~-0.030 h6 4 SEME7208040 8 8 40 90 0~-0.030 h6 4 SEME7208040120 8 8 40 120 0~-0.030 h6 4 SEME7208040120 8 8 40 150 0~-0.030 h6 4 SEME7208040120E 8 8 40 150 0~-0.030 h6 4 SEME7208040150 8 8 40 150 0~-0.030 h6 4 SEME7208040150 8 8 40 90 0~-0.030 h6 4 SEME7208040150E 8 8 40 90 0~-0.030 h6 4 SEME7208040E 8 8 40 120 0~-0.030 h6 4 SEME7208045 8 8 45 100 0~-0.030 h6 4 SEME7208045E 8 8 45 100 0~-0.030 h6 4 SEME7208050 8 8 50 100 0~-0.030 h6 4 SEME7208050 8 8 50 150 0~-0.030 h6 4 SEME7208050150 8 8 50 100 0~-0.030 h6 4 SEME7208050150 8 8 50 150 0~-0.030 h6 4 SEME7208050150E 8 8 50 100 0~-0.030 h6 4 SEME7208050E 8 8 50 150 0~-0.030 h6 4 SEME7210030 10 10 30 100 0~-0.030 h6 4 SEME7210030 10 10 30 80 0~-0.030 h6 4 SEME7210030100 10 10 30 100 0~-0.030 h6 4 SEME7210030100 10 10 30 80 0~-0.030 h6 4 SEME7210030100E 10 10 30 80 0~-0.030 h6 4 SEME7210030E 10 10 30 100 0~-0.030 h6 4 SEME7210035 10 10 35 90 0~-0.030 h6 4 SEME7210035E 10 10 35 90 0~-0.030 h6 4 SEME7210040 10 10 40 120 0~-0.030 h6 4 SEME7210040 10 10 40 90 0~-0.030 h6 4 SEME7210040120 10 10 40 120 0~-0.030 h6 4 SEME7210040120 10 10 40 90 0~-0.030 h6 4 SEME7210040120E 10 10 40 90 0~-0.030 h6 4 SEME7210040E 10 10 40 120 0~-0.030 h6 4 SEME7210045 10 10 45 100 0~-0.030 h6 4 SEME7210045E 10 10 45 100 0~-0.030 h6 4 SEME7210050 10 10 50 100 0~-0.030 h6 4 SEME7210050 10 10 50 150 0~-0.030 h6 4 SEME7210050150 10 10 50 150 0~-0.030 h6 4 SEME7210050150 10 10 50 200 0~-0.030 h6 4 SEME7210050150E 10 10 50 200 0~-0.030 h6 4 SEME7210050200 10 10 50 100 0~-0.030 h6 4 SEME7210050200 10 10 50 200 0~-0.030 h6 4 SEME7210050200E 10 10 50 100 0~-0.030 h6 4 SEME7210050E 10 10 50 150 0~-0.030 h6 4 SEME7210055 10 10 55 150 0~-0.030 h6 4 SEME7210055E 10 10 55 150 0~-0.030 h6 4 SEME7210060 10 10 60 110 0~-0.030 h6 4 SEME7210060 10 10 60 200 0~-0.030 h6 4 SEME7210060200 10 10 60 110 0~-0.030 h6 4 SEME7210060200 10 10 60 200 0~-0.030 h6 4 SEME7210060200E 10 10 60 110 0~-0.030 h6 4 SEME7210060E 10 10 60 200 0~-0.030 h6 4 SEME7212035 12 12 35 90 0~-0.030 h6 4 SEME7212035E 12 12 35 90 0~-0.030 h6 4 SEME7212040 12 12 40 100 0~-0.030 h6 4 SEME7212040 12 12 40 120 0~-0.030 h6 4 SEME7212040120 12 12 40 100 0~-0.030 h6 4 SEME7212040120 12 12 40 120 0~-0.030 h6 4 SEME7212040120E 12 12 40 100 0~-0.030 h6 4 SEME7212040E 12 12 40 120 0~-0.030 h6 4 SEME7212045 12 12 45 130 0~-0.030 h6 4 SEME7212045E 12 12 45 130 0~-0.030 h6 4 SEME7212050 12 12 50 100 0~-0.030 h6 4 SEME7212050 12 12 50 150 0~-0.030 h6 4 SEME7212050150 12 12 50 100 0~-0.030 h6 4 SEME7212050150 12 12 50 150 0~-0.030 h6 4 SEME7212050150E 12 12 50 100 0~-0.030 h6 4 SEME7212050E 12 12 50 150 0~-0.030 h6 4 SEME7212055 12 12 55 110 0~-0.030 h6 4 SEME7212055E 12 12 55 110 0~-0.030 h6 4 SEME7212060 12 12 60 110 0~-0.030 h6 4 SEME7212060 12 12 60 150 0~-0.030 h6 4 SEME7212060150 12 12 60 150 0~-0.030 h6 4 SEME7212060150 12 12 60 200 0~-0.030 h6 4 SEME7212060150E 12 12 60 200 0~-0.030 h6 4 SEME7212060200 12 12 60 110 0~-0.030 h6 4 SEME7212060200 12 12 60 200 0~-0.030 h6 4 SEME7212060200E 12 12 60 110 0~-0.030 h6 4 SEME7212060E 12 12 60 150 0~-0.030 h6 4 SEME7212065 12 12 65 150 0~-0.030 h6 4 SEME7212065E 12 12 65 150 0~-0.030 h6 4 SEME7212070 12 12 70 120 0~-0.030 h6 4 SEME7212070 12 12 70 200 0~-0.030 h6 4 SEME7212070200 12 12 70 120 0~-0.030 h6 4 SEME7212070200 12 12 70 200 0~-0.030 h6 4 SEME7212070200E 12 12 70 120 0~-0.030 h6 4 SEME7212070E 12 12 70 200 0~-0.030 h6 4 SEME7214050 14 16 50 110 0~-0.030 h6 4 SEME7214050E 14 16 50 110 0~-0.030 h6 4 SEME7214060 14 16 60 150 0~-0.030 h6 4 SEME7214060E 14 16 60 150 0~-0.030 h6 4 SEME72160110 16 16 110 200 0~-0.030 h6 4 SEME72160110 16 16 80 150 0~-0.030 h6 4 SEME72160110E 16 16 80 150 0~-0.030 h6 4 SEME72160120 16 16 120 250 0~-0.030 h6 4 SEME72160120 16 16 90 150 0~-0.030 h6 4 SEME72160120E 16 16 90 150 0~-0.030 h6 4 SEME7216040 16 16 110 200 0~-0.030 h6 4 SEME7216040 16 16 40 150 0~-0.030 h6 4 SEME7216040E 16 16 110 200 0~-0.030 h6 4 SEME7216050 16 16 120 250 0~-0.030 h6 4 SEME7216050 16 16 50 110 0~-0.030 h6 4 SEME7216050150 16 16 40 150 0~-0.030 h6 4 SEME7216050150 16 16 50 150 0~-0.030 h6 4 SEME7216050150E 16 16 40 150 0~-0.030 h6 4 SEME7216050E 16 16 120 250 0~-0.030 h6 4 SEME7216060 16 16 50 150 0~-0.030 h6 4 SEME7216060 16 16 60 120 0~-0.030 h6 4 SEME7216060E 16 16 50 150 0~-0.030 h6 4 SEME7216070 16 16 50 110 0~-0.030 h6 4 SEME7216070 16 16 70 130 0~-0.030 h6 4 SEME7216070150 16 16 60 120 0~-0.030 h6 4 SEME7216070150 16 16 70 150 0~-0.030 h6 4 SEME7216070150E 16 16 60 120 0~-0.030 h6 4 SEME7216070200 16 16 70 150 0~-0.030 h6 4 SEME7216070200 16 16 70 200 0~-0.030 h6 4 SEME7216070200E 16 16 70 150 0~-0.030 h6 4 SEME7216070E 16 16 50 110 0~-0.030 h6 4 SEME7216080 16 16 70 200 0~-0.030 h6 4 SEME7216080 16 16 80 150 0~-0.030 h6 4 SEME7216080E 16 16 70 200 0~-0.030 h6 4 SEME7216090 16 16 70 130 0~-0.030 h6 4 SEME7216090 16 16 90 150 0~-0.030 h6 4 SEME7216090E 16 16 70 130 0~-0.030 h6 4 SEME72180100 18 20 100 200 0~-0.030 h6 4 SEME72180100 18 20 70 130 0~-0.030 h6 4 SEME72180100E 18 20 70 130 0~-0.030 h6 4 SEME7218050 18 20 100 200 0~-0.030 h6 4 SEME7218050 18 20 50 120 0~-0.030 h6 4 SEME7218050E 18 20 100 200 0~-0.030 h6 4 SEME7218070 18 20 50 120 0~-0.030 h6 4 SEME7218070 18 20 70 130 0~-0.030 h6 4 SEME7218070E 18 20 50 120 0~-0.030 h6 4 SEME72200110 20 20 110 200 0~-0.030 h6 4 SEME72200110 20 20 90 200 0~-0.030 h6 4 SEME72200110E 20 20 90 200 0~-0.030 h6 4 SEME72200120 20 20 120 250 0~-0.030 h6 4 SEME72200120 20 20 90 150 0~-0.030 h6 4 SEME72200120E 20 20 90 150 0~-0.030 h6 4 SEME7220050 20 20 110 200 0~-0.030 h6 4 SEME7220050 20 20 50 110 0~-0.030 h6 4 SEME7220050150 20 20 120 250 0~-0.030 h6 4 SEME7220050150 20 20 50 150 0~-0.030 h6 4 SEME7220050150E 20 20 120 250 0~-0.030 h6 4 SEME7220050E 20 20 110 200 0~-0.030 h6 4 SEME7220060 20 20 50 150 0~-0.030 h6 4 SEME7220060 20 20 60 130 0~-0.030 h6 4 SEME7220060E 20 20 50 150 0~-0.030 h6 4 SEME7220070 20 20 50 110 0~-0.030 h6 4 SEME7220070 20 20 70 130 0~-0.030 h6 4 SEME7220070E 20 20 50 110 0~-0.030 h6 4 SEME7220080 20 20 60 130 0~-0.030 h6 4 SEME7220080 20 20 80 150 0~-0.030 h6 4 SEME7220080E 20 20 60 130 0~-0.030 h6 4 SEME7220090 20 20 70 130 0~-0.030 h6 4 SEME7220090 20 20 90 150 0~-0.030 h6 4 SEME7220090200 20 20 80 150 0~-0.030 h6 4 SEME7220090200 20 20 90 200 0~-0.030 h6 4 SEME7220090200E 20 20 80 150 0~-0.030 h6 4 SEME7220090E 20 20 70 130 0~-0.030 h6 4 SEME72220110 22 20 110 200 0~-0.030 h6 4 SEME72220110 22 20 75 150 0~-0.030 h6 4 SEME72220110E 22 20 75 150 0~-0.030 h6 4 SEME7222075 22 20 110 200 0~-0.030 h6 4 SEME7222075 22 20 75 150 0~-0.030 h6 4 SEME7222075E 22 20 110 200 0~-0.030 h6 4 SEME72250110 25 25 110 200 0~-0.030 h6 4 SEME72250110 25 25 70 150 0~-0.030 h6 4 SEME72250110E 25 25 70 150 0~-0.030 h6 4 SEME72250120 25 25 120 250 0~-0.030 h6 4 SEME72250120 25 25 90 150 0~-0.030 h6 4 SEME72250120E 25 25 120 250 0~-0.030 h6 4 SEME7225070 25 25 110 200 0~-0.030 h6 4 SEME7225070 25 25 70 150 0~-0.030 h6 4 SEME7225070E 25 25 110 200 0~-0.030 h6 4 SEME7225090 25 25 120 250 0~-0.030 h6 4 SEME7225090 25 25 90 150 0~-0.030 h6 4 SEME7225090E 25 25 120 250 0~-0.030 h6 4
Ống kẹp dao, Collet kẹp dao ER32S, SEALED ER COLLET-INCH TYPE ER32S

Liên hệ

Mã sản phẩm: ER32S

ER32S EDP No. CLAMPINGCAPACITY 320108S 1/8 320532S 5/32 250316S 3/16 320732S 7/32 320104S 1/4 320932S 9/32 320516S 5/16 321132S 11/32 320308S 3/8 321332S 13/32 320716S 7/16 321532S 15/32 320102S 1/2 321732S 17/32 320916S 9/16 321932S 19/32 320508S 5/8 322132S 21/32 321116S 11/16 322332S 23/32 320304S 3/4 ER32S21S STANDARD SET Ø1/8” to 3/4” 21pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Dao phay hợp kim YG SEME36, Dao phay thép YG SEME36

Liên hệ

Mã sản phẩm: SEME36

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute Taper Angle SEME36008 0.8 4 1.6 40 0~-0.030 h6 4 SEME36008E 0.8 4 1.6 40 0~-0.030 h6 4 SEME36009 0.9 4 1.8 40 0~-0.030 h6 4 SEME36009E 0.9 4 1.8 40 0~-0.030 h6 4 SEME36010 1 6 2.5 50 0~-0.030 h6 4 SEME36010E 1 6 2.5 50 0~-0.030 h6 4 SEME36012 1.2 6 3 50 0~-0.030 h6 4 SEME36012E 1.2 6 3 50 0~-0.030 h6 4 SEME36015 1.5 6 4 50 0~-0.030 h6 4 SEME36015E 1.5 6 4 50 0~-0.030 h6 4 SEME36020 2 6 6 50 0~-0.030 h6 4 SEME36020E 2 6 6 50 0~-0.030 h6 4 SEME36025 2.5 6 7 50 0~-0.030 h6 4 SEME36025E 2.5 6 7 50 0~-0.030 h6 4 SEME36030 3 6 8 50 0~-0.030 h6 4 SEME36030E 3 6 8 50 0~-0.030 h6 4 SEME36035 3.5 6 10 50 0~-0.030 h6 4 SEME36035E 3.5 6 10 50 0~-0.030 h6 4 SEME36040 4 6 10 50 0~-0.030 h6 4 SEME36040E 4 6 10 50 0~-0.030 h6 4 SEME36045 4.5 6 14 50 0~-0.030 h6 4 SEME36045E 4.5 6 14 50 0~-0.030 h6 4 SEME36050 5 6 15 60 0~-0.030 h6 4 SEME36050E 5 6 15 60 0~-0.030 h6 4 SEME36055 5.5 6 15 60 0~-0.030 h6 4 SEME36055E 5.5 6 15 60 0~-0.030 h6 4 SEME36060 6 6 15 60 0~-0.030 h6 4 SEME36060E 6 6 15 60 0~-0.030 h6 4 SEME36065 6.5 8 18 60 0~-0.030 h6 4 SEME36065E 6.5 8 18 60 0~-0.030 h6 4 SEME36070 7 8 20 60 0~-0.030 h6 4 SEME36070E 7 8 20 60 0~-0.030 h6 4 SEME36075 7.5 8 20 60 0~-0.030 h6 4 SEME36075E 7.5 8 20 60 0~-0.030 h6 4 SEME36080 8 8 20 70 0~-0.030 h6 4 SEME36080E 8 8 20 70 0~-0.030 h6 4 SEME36085 8.5 10 22 70 0~-0.030 h6 4 SEME36085E 8.5 10 22 70 0~-0.030 h6 4 SEME36090 9 10 22 70 0~-0.030 h6 4 SEME36090E 9 10 22 70 0~-0.030 h6 4 SEME36095 9.5 10 24 70 0~-0.030 h6 4 SEME36095E 9.5 10 24 70 0~-0.030 h6 4 SEME36100 10 10 25 75 0~-0.030 h6 4 SEME36100E 10 10 25 75 0~-0.030 h6 4 SEME36105 10.5 12 26 75 0~-0.030 h6 4 SEME36105E 10.5 12 26 75 0~-0.030 h6 4 SEME36110 11 12 30 75 0~-0.030 h6 4 SEME36110E 11 12 30 75 0~-0.030 h6 4 SEME36115 11.5 12 30 80 0~-0.030 h6 4 SEME36115E 11.5 12 30 80 0~-0.030 h6 4 SEME36120 12 12 30 80 0~-0.030 h6 4 SEME36120E 12 12 30 80 0~-0.030 h6 4 SEME36130 13 12 35 100 0~-0.030 h6 4 SEME36130E 13 12 35 100 0~-0.030 h6 4 SEME36140 14 16 35 100 0~-0.030 h6 4 SEME3614012S 14 12 35 100 0~-0.030 h6 4 SEME3614012SE 14 12 35 100 0~-0.030 h6 4 SEME3614014S 14 14 35 100 0~-0.030 h6 4 SEME3614014SE 14 14 35 100 0~-0.030 h6 4 SEME36140E 14 16 35 100 0~-0.030 h6 4 SEME36150 15 16 38 100 0~-0.030 h6 4 SEME36150E 15 16 38 100 0~-0.030 h6 4 SEME36160 16 16 40 100 0~-0.030 h6 4 SEME36160E 16 16 40 100 0~-0.030 h6 4 SEME36170 17 16 42 100 0~-0.030 h6 4 SEME36170E 17 16 42 100 0~-0.030 h6 4 SEME36180 18 16 45 100 0~-0.030 h6 4 SEME3618018S 18 18 45 100 0~-0.030 h6 4 SEME3618018SE 18 18 45 100 0~-0.030 h6 4 SEME36180E 18 16 45 100 0~-0.030 h6 4 SEME36190 19 20 45 100 0~-0.030 h6 4 SEME36190E 19 20 45 100 0~-0.030 h6 4 SEME36200 20 20 45 100 0~-0.030 h6 4 SEME36200E 20 20 45 100 0~-0.030 h6 4 SEME36210 21 20 45 100 0~-0.030 h6 4 SEME36210E 21 20 45 100 0~-0.030 h6 4 SEME36220 22 20 45 100 0~-0.030 h6 4 SEME36220E 22 20 45 100 0~-0.030 h6 4 SEME36230 23 25 50 120 0~-0.030 h6 4 SEME36230E 23 25 50 120 0~-0.030 h6 4 SEME36240 24 25 50 120 0~-0.030 h6 4 SEME36240E 24 25 50 120 0~-0.030 h6 4 SEME36250 25 25 50 120 0~-0.030 h6 4 SEME36250E 25 25 50 120 0~-0.030 h6 4
Dao phay hợp kim YG SEM845, Dao phay trụ YG SEM845

Liên hệ

Mã sản phẩm: SEM845

EDP No. R D1 D2 L1 L3 L2 Mill Dia. Tolerance Shank Dia.Tolerance No. of Flute SEM845001003 0.1 4 0.15 0.3 40 0~-0.012 h6 2 SEM845001003E 0.1 4 0.15 0.3 40 0~-0.012 h6 2 SEM845001005 0.1 4 0.15 0.5 40 0~-0.012 h6 2 SEM845001005E 0.1 4 0.15 0.5 40 0~-0.012 h6 2 SEM84500101 0.1 4 0.15 1 40 0~-0.012 h6 2 SEM84500101E 0.1 4 0.15 1 40 0~-0.012 h6 2 SEM845002005 0.2 4 0.3 0.5 40 0~-0.012 h6 2 SEM845002005E 0.2 4 0.3 0.5 40 0~-0.012 h6 2 SEM84500201 0.2 4 0.3 1 40 0~-0.012 h6 2 SEM84500201 0.2 4 0.3 1.5 40 0~-0.012 h6 2 SEM845002015 0.2 4 0.3 1 40 0~-0.012 h6 2 SEM845002015 0.2 4 0.3 1.5 40 0~-0.012 h6 2 SEM845002015E 0.2 4 0.3 1 40 0~-0.012 h6 2 SEM84500201E 0.2 4 0.3 1.5 40 0~-0.012 h6 2 SEM84500202 0.2 4 0.3 2 40 0~-0.012 h6 2 SEM84500202E 0.2 4 0.3 2 40 0~-0.012 h6 2 SEM84500301 0.3 4 0.5 1 40 0~-0.012 h6 2 SEM84500301 0.3 4 0.5 1.5 40 0~-0.012 h6 2 SEM845003015 0.3 4 0.5 1 40 0~-0.012 h6 2 SEM845003015 0.3 4 0.5 1.5 40 0~-0.012 h6 2 SEM845003015E 0.3 4 0.5 1 40 0~-0.012 h6 2 SEM84500301E 0.3 4 0.5 1.5 40 0~-0.012 h6 2 SEM84500302 0.3 4 0.5 2 40 0~-0.012 h6 2 SEM84500302 0.3 4 0.5 2.5 40 0~-0.012 h6 2 SEM845003025 0.3 4 0.5 2 40 0~-0.012 h6 2 SEM845003025 0.3 4 0.5 2.5 40 0~-0.012 h6 2 SEM845003025E 0.3 4 0.5 2 40 0~-0.012 h6 2 SEM84500302E 0.3 4 0.5 2.5 40 0~-0.012 h6 2 SEM84500303 0.3 4 0.5 3 40 0~-0.012 h6 2 SEM84500303E 0.3 4 0.5 3 40 0~-0.012 h6 2 SEM84500304 0.3 4 0.5 4 40 0~-0.012 h6 2 SEM84500304E 0.3 4 0.5 4 40 0~-0.012 h6 2 SEM84500305 0.3 4 0.5 5 40 0~-0.012 h6 2 SEM84500305E 0.3 4 0.5 5 40 0~-0.012 h6 2 SEM84500401 0.4 4 0.6 1 40 0~-0.012 h6 2 SEM84500401 0.4 4 0.6 1.5 40 0~-0.012 h6 2 SEM845004015 0.4 4 0.6 1 40 0~-0.012 h6 2 SEM845004015 0.4 4 0.6 1.5 40 0~-0.012 h6 2 SEM845004015E 0.4 4 0.6 1 40 0~-0.012 h6 2 SEM84500401E 0.4 4 0.6 1.5 40 0~-0.012 h6 2 SEM84500402 0.4 4 0.6 2 40 0~-0.012 h6 2 SEM84500402 0.4 4 0.6 2.5 40 0~-0.012 h6 2 SEM845004025 0.4 4 0.6 2 40 0~-0.012 h6 2 SEM845004025 0.4 4 0.6 2.5 40 0~-0.012 h6 2 SEM845004025E 0.4 4 0.6 2 40 0~-0.012 h6 2 SEM84500402E 0.4 4 0.6 2.5 40 0~-0.012 h6 2 SEM84500403 0.4 4 0.6 3 40 0~-0.012 h6 2 SEM84500403E 0.4 4 0.6 3 40 0~-0.012 h6 2 SEM84500404 0.4 4 0.6 4 40 0~-0.012 h6 2 SEM84500404E 0.4 4 0.6 4 40 0~-0.012 h6 2 SEM84500405 0.4 4 0.6 5 40 0~-0.012 h6 2 SEM84500405E 0.4 4 0.6 5 40 0~-0.012 h6 2 SEM84500406 0.4 4 0.6 6 40 0~-0.012 h6 2 SEM84500406E 0.4 4 0.6 6 40 0~-0.012 h6 2 SEM84500408 0.4 4 0.6 8 40 0~-0.012 h6 2 SEM84500408E 0.4 4 0.6 8 40 0~-0.012 h6 2 SEM84500410 0.4 4 0.6 10 40 0~-0.012 h6 2 SEM84500410E 0.4 4 0.6 10 40 0~-0.012 h6 2 SEM84500501 0.5 4 0.7 1 45 0~-0.012 h6 2 SEM84500501 0.5 4 0.7 1.5 45 0~-0.012 h6 2 SEM845005015 0.5 4 0.7 1 45 0~-0.012 h6 2 SEM845005015 0.5 4 0.7 1.5 45 0~-0.012 h6 2 SEM845005015E 0.5 4 0.7 1 45 0~-0.012 h6 2 SEM84500501E 0.5 4 0.7 1.5 45 0~-0.012 h6 2 SEM84500502 0.5 4 0.7 2 45 0~-0.012 h6 2 SEM84500502 0.5 4 0.7 2.5 45 0~-0.012 h6 2 SEM845005025 0.5 4 0.7 2 45 0~-0.012 h6 2 SEM845005025 0.5 4 0.7 2.5 45 0~-0.012 h6 2 SEM845005025E 0.5 4 0.7 2 45 0~-0.012 h6 2 SEM84500502E 0.5 4 0.7 2.5 45 0~-0.012 h6 2 SEM84500503 0.5 4 0.7 3 45 0~-0.012 h6 2 SEM84500503E 0.5 4 0.7 3 45 0~-0.012 h6 2 SEM84500504 0.5 4 0.7 4 45 0~-0.012 h6 2 SEM84500504E 0.5 4 0.7 4 45 0~-0.012 h6 2 SEM84500505 0.5 4 0.7 5 45 0~-0.012 h6 2 SEM84500505E 0.5 4 0.7 5 45 0~-0.012 h6 2 SEM84500506 0.5 4 0.7 6 45 0~-0.012 h6 2 SEM84500506E 0.5 4 0.7 6 45 0~-0.012 h6 2 SEM84500508 0.5 4 0.7 8 45 0~-0.012 h6 2 SEM84500508E 0.5 4 0.7 8 45 0~-0.012 h6 2 SEM84500510 0.5 4 0.7 10 45 0~-0.012 h6 2 SEM84500510E 0.5 4 0.7 10 45 0~-0.012 h6 2 SEM84500512 0.5 4 0.7 12 45 0~-0.012 h6 2 SEM84500512E 0.5 4 0.7 12 45 0~-0.012 h6 2 SEM84500514 0.5 4 0.7 14 45 0~-0.012 h6 2 SEM84500514E 0.5 4 0.7 14 45 0~-0.012 h6 2 SEM84500516 0.5 4 0.7 16 45 0~-0.012 h6 2 SEM84500516E 0.5 4 0.7 16 45 0~-0.012 h6 2 SEM84500602 0.6 4 0.9 2 45 0~-0.012 h6 2 SEM84500602E 0.6 4 0.9 2 45 0~-0.012 h6 2 SEM84500603 0.6 4 0.9 3 45 0~-0.012 h6 2 SEM84500603E 0.6 4 0.9 3 45 0~-0.012 h6 2 SEM84500604 0.6 4 0.9 4 45 0~-0.012 h6 2 SEM84500604E 0.6 4 0.9 4 45 0~-0.012 h6 2 SEM84500605 0.6 4 0.9 5 45 0~-0.012 h6 2 SEM84500605E 0.6 4 0.9 5 45 0~-0.012 h6 2 SEM84500606 0.6 4 0.9 6 45 0~-0.012 h6 2 SEM84500606E 0.6 4 0.9 6 45 0~-0.012 h6 2 SEM84500608 0.6 4 0.9 8 45 0~-0.012 h6 2 SEM84500608E 0.6 4 0.9 8 45 0~-0.012 h6 2 SEM84500610 0.6 4 0.9 10 45 0~-0.012 h6 2 SEM84500610E 0.6 4 0.9 10 45 0~-0.012 h6 2 SEM84500612 0.6 4 0.9 12 45 0~-0.012 h6 2 SEM84500612E 0.6 4 0.9 12 45 0~-0.012 h6 2 SEM84500614 0.6 4 0.9 14 45 0~-0.012 h6 2 SEM84500614E 0.6 4 0.9 14 45 0~-0.012 h6 2 SEM84500616 0.6 4 0.9 16 45 0~-0.012 h6 2 SEM84500616E 0.6 4 0.9 16 45 0~-0.012 h6 2 SEM84500702 0.7 4 1.2 2 45 0~-0.012 h6 2 SEM84500702E 0.7 4 1.2 2 45 0~-0.012 h6 2 SEM84500704 0.7 4 1.2 4 45 0~-0.012 h6 2 SEM84500704E 0.7 4 1.2 4 45 0~-0.012 h6 2 SEM84500706 0.7 4 1.2 6 45 0~-0.012 h6 2 SEM84500706E 0.7 4 1.2 6 45 0~-0.012 h6 2 SEM84500708 0.7 4 1.2 8 45 0~-0.012 h6 2 SEM84500708E 0.7 4 1.2 8 45 0~-0.012 h6 2 SEM84500710 0.7 4 1.2 10 45 0~-0.012 h6 2 SEM84500710E 0.7 4 1.2 10 45 0~-0.012 h6 2 SEM84500712 0.7 4 1.2 12 45 0~-0.012 h6 2 SEM84500712E 0.7 4 1.2 12 45 0~-0.012 h6 2 SEM84500802 0.8 4 1.2 2 45 0~-0.012 h6 2 SEM84500802E 0.8 4 1.2 2 45 0~-0.012 h6 2 SEM84500803 0.8 4 1.2 3 45 0~-0.012 h6 2 SEM84500803E 0.8 4 1.2 3 45 0~-0.012 h6 2 SEM84500804 0.8 4 1.2 4 45 0~-0.012 h6 2 SEM84500804E 0.8 4 1.2 4 45 0~-0.012 h6 2 SEM84500805 0.8 4 1.2 5 45 0~-0.012 h6 2 SEM84500805E 0.8 4 1.2 5 45 0~-0.012 h6 2 SEM84500806 0.8 4 1.2 6 45 0~-0.012 h6 2 SEM84500806E 0.8 4 1.2 6 45 0~-0.012 h6 2 SEM84500808 0.8 4 1.2 8 45 0~-0.012 h6 2 SEM84500808E 0.8 4 1.2 8 45 0~-0.012 h6 2 SEM84500810 0.8 4 1.2 10 45 0~-0.012 h6 2 SEM84500810E 0.8 4 1.2 10 45 0~-0.012 h6 2 SEM84500812 0.8 4 1.2 12 45 0~-0.012 h6 2 SEM84500812E 0.8 4 1.2 12 45 0~-0.012 h6 2 SEM84500814 0.8 4 1.2 14 45 0~-0.012 h6 2 SEM84500814E 0.8 4 1.2 14 45 0~-0.012 h6 2 SEM84500816 0.8 4 1.2 16 45 0~-0.012 h6 2 SEM84500816E 0.8 4 1.2 16 45 0~-0.012 h6 2 SEM84500820 0.8 4 1.2 20 45 0~-0.012 h6 2 SEM84500820E 0.8 4 1.2 20 45 0~-0.012 h6 2 SEM84500906 0.9 4 1.3 6 45 0~-0.012 h6 2 SEM84500906E 0.9 4 1.3 6 45 0~-0.012 h6 2 SEM84500908 0.9 4 1.3 8 45 0~-0.012 h6 2 SEM84500908E 0.9 4 1.3 8 45 0~-0.012 h6 2 SEM84500910 0.9 4 1.3 10 45 0~-0.012 h6 2 SEM84500910E 0.9 4 1.3 10 45 0~-0.012 h6 2 SEM84501002 1 4 1.5 2 50 0~-0.012 h6 2 SEM84501002E 1 4 1.5 2 50 0~-0.012 h6 2 SEM84501003 1 4 1.5 3 50 0~-0.012 h6 2 SEM84501003E 1 4 1.5 3 50 0~-0.012 h6 2 SEM84501004 1 4 1.5 4 50 0~-0.012 h6 2 SEM84501004E 1 4 1.5 4 50 0~-0.012 h6 2 SEM84501005 1 4 1.5 5 50 0~-0.012 h6 2 SEM84501005E 1 4 1.5 5 50 0~-0.012 h6 2 SEM84501006 1 4 1.5 6 50 0~-0.012 h6 2 SEM84501006E 1 4 1.5 6 50 0~-0.012 h6 2 SEM84501007 1 4 1.5 7 50 0~-0.012 h6 2 SEM84501007E 1 4 1.5 7 50 0~-0.012 h6 2 SEM84501008 1 4 1.5 8 50 0~-0.012 h6 2 SEM84501008E 1 4 1.5 8 50 0~-0.012 h6 2 SEM84501010 1 4 1.5 10 50 0~-0.012 h6 2 SEM84501010E 1 4 1.5 10 50 0~-0.012 h6 2 SEM84501012 1 4 1.5 12 50 0~-0.012 h6 2 SEM84501012E 1 4 1.5 12 50 0~-0.012 h6 2 SEM84501014 1 4 1.5 14 50 0~-0.012 h6 2 SEM84501014E 1 4 1.5 14 50 0~-0.012 h6 2 SEM84501016 1 4 1.5 16 50 0~-0.012 h6 2 SEM84501016E 1 4 1.5 16 50 0~-0.012 h6 2 SEM84501018 1 4 1.5 18 50 0~-0.012 h6 2 SEM84501018E 1 4 1.5 18 50 0~-0.012 h6 2 SEM84501020 1 4 1.5 20 50 0~-0.012 h6 2 SEM84501020E 1 4 1.5 20 50 0~-0.012 h6 2 SEM84501022 1 4 1.5 22 60 0~-0.012 h6 2 SEM84501022E 1 4 1.5 22 60 0~-0.012 h6 2 SEM84501026 1 4 1.5 26 60 0~-0.012 h6 2 SEM84501026E 1 4 1.5 26 60 0~-0.012 h6 2 SEM84501030 1 4 1.5 30 70 0~-0.012 h6 2 SEM84501030E 1 4 1.5 30 70 0~-0.012 h6 2 SEM84501040 1 4 1.5 40 80 0~-0.012 h6 2 SEM84501040E 1 4 1.5 40 80 0~-0.012 h6 2 SEM84501050 1 4 1.5 50 100 0~-0.012 h6 2 SEM84501050E 1 4 1.5 50 100 0~-0.012 h6 2 SEM84501204 1.2 4 1.8 4 50 0~-0.012 h6 2 SEM84501204E 1.2 4 1.8 4 50 0~-0.012 h6 2 SEM84501206 1.2 4 1.8 6 50 0~-0.012 h6 2 SEM84501206E 1.2 4 1.8 6 50 0~-0.012 h6 2 SEM84501208 1.2 4 1.8 8 50 0~-0.012 h6 2 SEM84501208E 1.2 4 1.8 8 50 0~-0.012 h6 2 SEM84501210 1.2 4 1.8 10 50 0~-0.012 h6 2 SEM84501210E 1.2 4 1.8 10 50 0~-0.012 h6 2 SEM84501212 1.2 4 1.8 12 5 0~-0.012 h6 2 SEM84501212 1.2 4 1.8 12 50 0~-0.012 h6 2 SEM84501212E 1.2 4 1.8 12 50 0~-0.012 h6 2 SEM84501214 1.2 4 1.8 14 50 0~-0.012 h6 2 SEM84501214E 1.2 4 1.8 14 50 0~-0.012 h6 2 SEM84501216 1.2 4 1.8 16 50 0~-0.012 h6 2 SEM84501216E 1.2 4 1.8 16 50 0~-0.012 h6 2 SEM84501220 1.2 4 1.8 20 50 0~-0.012 h6 2 SEM84501220E 1.2 4 1.8 20 50 0~-0.012 h6 2 SEM84501226 1.2 4 1.8 26 60 0~-0.012 h6 2 SEM84501226E 1.2 4 1.8 26 60 0~-0.012 h6 2 SEM84501230 1.2 4 1.8 30 70 0~-0.012 h6 2 SEM84501230E 1.2 4 1.8 30 70 0~-0.012 h6 2 SEM84501406 1.4 4 2.1 6 50 0~-0.012 h6 2 SEM84501406E 1.4 4 2.1 6 50 0~-0.012 h6 2 SEM84501408 1.4 4 2.1 8 50 0~-0.012 h6 2 SEM84501408E 1.4 4 2.1 8 50 0~-0.012 h6 2 SEM84501410 1.4 4 2.1 10 50 0~-0.012 h6 2 SEM84501410E 1.4 4 2.1 10 50 0~-0.012 h6 2 SEM84501414 1.4 4 2.1 14 50 0~-0.012 h6 2 SEM84501414E 1.4 4 2.1 14 50 0~-0.012 h6 2 SEM84501416 1.4 4 2.1 16 50 0~-0.012 h6 2 SEM84501416E 1.4 4 2.1 16 50 0~-0.012 h6 2 SEM84501420 1.4 4 2.1 20 50 0~-0.012 h6 2 SEM84501420E 1.4 4 2.1 20 50 0~-0.012 h6 2 SEM84501504 1.5 4 2.3 4 50 0~-0.012 h6 2 SEM84501504E 1.5 4 2.3 4 50 0~-0.012 h6 2 SEM84501505 1.5 4 2.3 5 50 0~-0.012 h6 2 SEM84501505E 1.5 4 2.3 5 50 0~-0.012 h6 2 SEM84501506 1.5 4 2.3 6 50 0~-0.012 h6 2 SEM84501506E 1.5 4 2.3 6 50 0~-0.012 h6 2 SEM84501507 1.5 4 2.3 7 50 0~-0.012 h6 2 SEM84501507E 1.5 4 2.3 7 50 0~-0.012 h6 2 SEM84501508 1.5 4 2.3 8 50 0~-0.012 h6 2 SEM84501508E 1.5 4 2.3 8 50 0~-0.012 h6 2 SEM84501510 1.5 4 2.3 10 50 0~-0.012 h6 2 SEM84501510E 1.5 4 2.3 10 50 0~-0.012 h6 2 SEM84501512 1.5 4 2.3 12 50 0~-0.012 h6 2 SEM84501512E 1.5 4 2.3 12 50 0~-0.012 h6 2 SEM84501514 1.5 4 2.3 14 50 0~-0.012 h6 2 SEM84501514E 1.5 4 2.3 14 50 0~-0.012 h6 2 SEM84501516 1.5 4 2.3 16 50 0~-0.012 h6 2 SEM84501516E 1.5 4 2.3 16 50 0~-0.012 h6 2 SEM84501518 1.5 4 2.3 18 50 0~-0.012 h6 2 SEM84501518E 1.5 4 2.3 18 50 0~-0.012 h6 2 SEM84501520 1.5 4 2.3 20 50 0~-0.012 h6 2 SEM84501520E 1.5 4 2.3 20 50 0~-0.012 h6 2 SEM84501522 1.5 4 2.3 22 60 0~-0.012 h6 2 SEM84501522E 1.5 4 2.3 22 60 0~-0.012 h6 2 SEM84501526 1.5 4 2.3 26 60 0~-0.012 h6 2 SEM84501526E 1.5 4 2.3 26 60 0~-0.012 h6 2 SEM84501530 1.5 4 2.3 30 70 0~-0.012 h6 2 SEM84501530E 1.5 4 2.3 30 70 0~-0.012 h6 2 SEM84501608 1.6 4 2.3 8 50 0~-0.012 h6 2 SEM84501608E 1.6 4 2.3 8 50 0~-0.012 h6 2 SEM84501610 1.6 4 2.3 10 50 0~-0.012 h6 2 SEM84501610E 1.6 4 2.3 10 50 0~-0.012 h6 2 SEM84501612 1.6 4 2.3 12 50 0~-0.012 h6 2 SEM84501612E 1.6 4 2.3 12 50 0~-0.012 h6 2 SEM84501616 1.6 4 2.3 16 50 0~-0.012 h6 2 SEM84501616E 1.6 4 2.3 16 50 0~-0.012 h6 2 SEM84501620 1.6 4 2.3 20 50 0~-0.012 h6 2 SEM84501620E 1.6 4 2.3 20 50 0~-0.012 h6 2 SEM84501808 1.8 4 2.7 8 50 0~-0.012 h6 2 SEM84501808E 1.8 4 2.7 8 50 0~-0.012 h6 2 SEM84501810 1.8 4 2.7 10 50 0~-0.012 h6 2 SEM84501810E 1.8 4 2.7 10 50 0~-0.012 h6 2 SEM84501812 1.8 4 2.7 12 50 0~-0.012 h6 2 SEM84501812E 1.8 4 2.7 12 50 0~-0.012 h6 2 SEM84501816 1.8 4 2.7 16 50 0~-0.012 h6 2 SEM84501816E 1.8 4 2.7 16 50 0~-0.012 h6 2 SEM84501820 1.8 4 2.7 20 50 0~-0.012 h6 2 SEM84501820E 1.8 4 2.7 20 50 0~-0.012 h6 2 SEM84502006 2 4 3 6 50 0~-0.012 h6 2 SEM84502006E 2 4 3 6 50 0~-0.012 h6 2 SEM84502008 2 4 3 8 50 0~-0.012 h6 2 SEM84502008E 2 4 3 8 50 0~-0.012 h6 2 SEM84502010 2 4 3 10 50 0~-0.012 h6 2 SEM84502010E 2 4 3 10 50 0~-0.012 h6 2 SEM84502012 2 4 3 12 50 0~-0.012 h6 2 SEM84502012E 2 4 3 12 50 0~-0.012 h6 2 SEM84502014 2 4 3 14 50 0~-0.012 h6 2 SEM84502014E 2 4 3 14 50 0~-0.012 h6 2 SEM84502016 2 4 3 16 50 0~-0.012 h6 2 SEM84502016E 2 4 3 16 50 0~-0.012 h6 2 SEM84502018 2 4 3 18 50 0~-0.012 h6 2 SEM84502018E 2 4 3 18 50 0~-0.012 h6 2 SEM84502020 2 4 3 20 50 0~-0.012 h6 2 SEM84502020E 2 4 3 20 50 0~-0.012 h6 2 SEM84502022 2 4 3 22 60 0~-0.012 h6 2 SEM84502022E 2 4 3 22 60 0~-0.012 h6 2 SEM84502026 2 4 3 26 60 0~-0.012 h6 2 SEM84502026E 2 4 3 26 60 0~-0.012 h6 2 SEM84502030 2 4 3 30 70 0~-0.012 h6 2 SEM84502030E 2 4 3 30 70 0~-0.012 h6 2 SEM84502035 2 4 3 35 70 0~-0.012 h6 2 SEM84502035E 2 4 3 35 70 0~-0.012 h6 2 SEM84502040 2 4 3 40 80 0~-0.012 h6 2 SEM84502040E 2 4 3 40 80 0~-0.012 h6 2 SEM84502045 2 4 3 45 90 0~-0.012 h6 2 SEM84502045E 2 4 3 45 90 0~-0.012 h6 2 SEM84502050 2 4 3 50 100 0~-0.012 h6 2 SEM84502050E 2 4 3 50 100 0~-0.012 h6 2 SEM84502060 2 4 60 110 0~-0.012 h6 2 SEM84502060 2 4 3 60 110 0~-0.012 h6 2 SEM84502060E 2 4 60 110 0~-0.012 h6 2 SEM84502508 2.5 4 4 8 50 0~-0.012 h6 2 SEM84502508E 2.5 4 4 8 50 0~-0.012 h6 2 SEM84502510 2.5 4 4 10 50 0~-0.012 h6 2 SEM84502510E 2.5 4 4 10 50 0~-0.012 h6 2 SEM84502512 2.5 4 4 12 50 0~-0.012 h6 2 SEM84502512E 2.5 4 4 12 50 0~-0.012 h6 2 SEM84502514 2.5 4 4 14 50 0~-0.012 h6 2 SEM84502514E 2.5 4 4 14 50 0~-0.012 h6 2 SEM84502516 2.5 4 4 16 50 0~-0.012 h6 2 SEM84502516E 2.5 4 4 16 50 0~-0.012 h6 2 SEM84502518 2.5 4 4 18 50 0~-0.012 h6 2 SEM84502518E 2.5 4 4 18 50 0~-0.012 h6 2 SEM84502520 2.5 4 4 20 50 0~-0.012 h6 2 SEM84502520E 2.5 4 4 20 50 0~-0.012 h6 2 SEM84502522 2.5 4 4 22 60 0~-0.012 h6 2 SEM84502522E 2.5 4 4 22 60 0~-0.012 h6 2 SEM84502526 2.5 4 4 26 60 0~-0.012 h6 2 SEM84502526E 2.5 4 4 26 60 0~-0.012 h6 2 SEM84502530 2.5 4 4 30 70 0~-0.012 h6 2 SEM84502530E 2.5 4 4 30 70 0~-0.012 h6 2 SEM84502535 2.5 4 4 35 70 0~-0.012 h6 2 SEM84502535E 2.5 4 4 35 70 0~-0.012 h6 2 SEM84502540 2.5 4 4 40 80 0~-0.012 h6 2 SEM84502540E 2.5 4 4 40 80 0~-0.012 h6 2 SEM84502545 2.5 4 4 45 90 0~-0.012 h6 2 SEM84502545E 2.5 4 4 45 90 0~-0.012 h6 2 SEM84502550 2.5 4 4 50 100 0~-0.012 h6 2 SEM84502550E 2.5 4 4 50 100 0~-0.012 h6 2 SEM84503006 3 6 4.5 6 50 0~-0.012 h6 2 SEM84503006E 3 6 4.5 6 50 0~-0.012 h6 2 SEM84503008 3 6 4.5 8 50 0~-0.012 h6 2 SEM84503008E 3 6 4.5 8 50 0~-0.012 h6 2 SEM84503010 3 6 4.5 10 50 0~-0.012 h6 2 SEM84503010E 3 6 4.5 10 50 0~-0.012 h6 2 SEM84503012 3 6 4.5 12 50 0~-0.012 h6 2 SEM84503012E 3 6 4.5 12 50 0~-0.012 h6 2 SEM84503014 3 6 4.5 14 60 0~-0.012 h6 2 SEM84503014E 3 6 4.5 14 60 0~-0.012 h6 2 SEM84503016 3 6 4.5 16 60 0~-0.012 h6 2 SEM84503016E 3 6 4.5 16 60 0~-0.012 h6 2 SEM84503018 3 6 4.5 18 60 0~-0.012 h6 2 SEM84503018E 3 6 4.5 18 60 0~-0.012 h6 2 SEM84503020 3 6 4.5 20 60 0~-0.012 h6 2 SEM84503020E 3 6 4.5 20 60 0~-0.012 h6 2 SEM84503022 3 6 4.5 22 65 0~-0.012 h6 2 SEM84503022E 3 6 4.5 22 65 0~-0.012 h6 2 SEM84503026 3 6 4.5 26 65 0~-0.012 h6 2 SEM84503026E 3 6 4.5 26 65 0~-0.012 h6 2 SEM84503030 3 6 4.5 30 70 0~-0.012 h6 2 SEM84503030E 3 6 4.5 30 70 0~-0.012 h6 2 SEM84503035 3 6 4.5 35 70 0~-0.012 h6 2 SEM84503035E 3 6 4.5 35 70 0~-0.012 h6 2 SEM84503040 3 6 4.5 40 80 0~-0.012 h6 2 SEM84503040E 3 6 4.5 40 80 0~-0.012 h6 2 SEM84503045 3 6 4.5 45 90 0~-0.012 h6 2 SEM84503045E 3 6 4.5 45 90 0~-0.012 h6 2 SEM84503050 3 6 4.5 50 100 0~-0.012 h6 2 SEM84503050E 3 6 4.5 50 100 0~-0.012 h6 2 SEM84503060 3 6 4.5 60 100 0~-0.012 h6 2 SEM84503060E 3 6 4.5 60 100 0~-0.012 h6 2 SEM84504008 4 6 6 8 50 0~-0.012 h6 2 SEM84504008E 4 6 6 8 50 0~-0.012 h6 2 SEM84504010 4 6 6 10 50 0~-0.012 h6 2 SEM84504010E 4 6 6 10 50 0~-0.012 h6 2 SEM84504012 4 6 6 12 50 0~-0.012 h6 2 SEM84504012E 4 6 6 12 50 0~-0.012 h6 2 SEM84504014 4 6 6 14 60 0~-0.012 h6 2 SEM84504014E 4 6 6 14 60 0~-0.012 h6 2 SEM84504016 4 6 6 16 60 0~-0.012 h6 2 SEM84504016E 4 6 6 16 60 0~-0.012 h6 2 SEM84504018 4 6 6 18 60 0~-0.012 h6 2 SEM84504018E 4 6 6 18 60 0~-0.012 h6 2 SEM84504020 4 6 6 20 60 0~-0.012 h6 2 SEM84504020E 4 6 6 20 60 0~-0.012 h6 2 SEM84504022 4 6 6 22 65 0~-0.012 h6 2 SEM84504022E 4 6 6 22 65 0~-0.012 h6 2 SEM84504026 4 6 6 26 65 0~-0.012 h6 2 SEM84504026E 4 6 6 26 65 0~-0.012 h6 2 SEM84504030 4 6 6 30 70 0~-0.012 h6 2 SEM84504030E 4 6 6 30 70 0~-0.012 h6 2 SEM84504035 4 6 6 35 70 0~-0.012 h6 2 SEM84504035E 4 6 6 35 70 0~-0.012 h6 2 SEM84504040 4 6 6 40 80 0~-0.012 h6 2 SEM84504040E 4 6 6 40 80 0~-0.012 h6 2 SEM84504045 4 6 6 45 90 0~-0.012 h6 2 SEM84504045E 4 6 6 45 90 0~-0.012 h6 2 SEM84504050 4 6 6 50 100 0~-0.012 h6 2 SEM84504050E 4 6 6 50 100 0~-0.012 h6 2 SEM84504060 4 6 6 60 100 0~-0.012 h6 2 SEM84504060E 4 6 6 60 100 0~-0.012 h6 2 SEM84505016 5 6 8 16 60 0~-0.012 h6 2 SEM84505016E 5 6 8 16 60 0~-0.012 h6 2 SEM84505020 5 6 8 20 60 0~-0.012 h6 2 SEM84505020E 5 6 8 20 60 0~-0.012 h6 2 SEM84505026 5 6 8 26 65 0~-0.012 h6 2 SEM84505026E 5 6 8 26 65 0~-0.012 h6 2 SEM84505030 5 6 8 30 70 0~-0.012 h6 2 SEM84505030E 5 6 8 30 70 0~-0.012 h6 2 SEM84505035 5 6 8 35 75 0~-0.012 h6 2 SEM84505035E 5 6 8 35 75 0~-0.012 h6 2 SEM84505040 5 6 8 40 80 0~-0.012 h6 2 SEM84505040E 5 6 8 40 80 0~-0.012 h6 2 SEM84505050 5 6 8 50 90 0~-0.012 h6 2 SEM84505050E 5 6 8 50 90 0~-0.012 h6 2 SEM84505060 5 6 8 60 100 0~-0.012 h6 2 SEM84505060E 5 6 8 60 100 0~-0.012 h6 2 SEM84506015 6 6 9 15 60 0~-0.012 h6 2 SEM84506015E 6 6 9 15 60 0~-0.012 h6 2 SEM84506020 6 6 9 20 60 0~-0.012 h6 2 SEM84506020E 6 6 9 20 60 0~-0.012 h6 2 SEM84506030 6 6 9 30 70 0~-0.012 h6 2 SEM84506030E 6 6 9 30 70 0~-0.012 h6 2 SEM84506032 6 6 9 32 90 0~-0.012 h6 2 SEM84506032E 6 6 9 32 90 0~-0.012 h6 2 SEM84508025 8 8 12 25 70 0~-0.015 h6 2 SEM84508025E 8 8 12 25 70 0~-0.015 h6 2 SEM84508030 8 8 12 30 80 0~-0.015 h6 2 SEM84508030E 8 8 12 30 80 0~-0.015 h6 2 SEM84508042 8 8 12 42 100 0~-0.015 h6 2 SEM84508042E 8 8 12 42 100 0~-0.015 h6 2 SEM84510030 10 10 15 30 75 0~-0.015 h6 2 SEM84510030E 10 10 15 30 75 0~-0.015 h6 2 SEM84510035 10 10 15 35 80 0~-0.015 h6 2 SEM84510035 10 10 25 35 75 0~-0.015 h6 2 SEM84510035E 10 10 25 35 75 0~-0.015 h6 2 SEM84510045 10 10 15 45 100 0~-0.015 h6 2 SEM84510045E 10 10 15 45 100 0~-0.015 h6 2 SEM84512035 12 12 20 35 80 0~-0.015 h6 2 SEM84512035E 12 12 20 35 80 0~-0.015 h6 2 SEM84512040 12 12 20 40 90 0~-0.015 h6 2 SEM84512040E 12 12 20 40 90 0~-0.015 h6 2 SEM84512050 12 12 20 50 110 0~-0.015 h6 2 SEM84512050E 12 12 20 50 110 0~-0.015 h6 2
Ống kẹp dao, Collet kẹp dao ER40S, SEALED ER COLLET-INCH TYPE ER40S

Liên hệ

Mã sản phẩm: ER40S

ER40S EDP No. CLAMPINGCAPACITY 400108S 1/8 400532S 5/32 400316S 3/16 400732S 7/32 400104S 1/4 400932S 9/32 400516S 5/16 401132S 11/32 400308S 3/8 401332S 13/32 400716S 7/16 401532S 15/32 400102S 1/2 401732S 17/32 400916S 9/16 401932S 19/32 400508S 5/8 402132S 21/32 401116S 11/16 402332S 23/32 400304S 3/4 402532S 25/32 401316S 13/16 402732S 27/32 400708S 7/8 402932S 29/32 401516S 15/16 403132S 31/32 401000S 1 ER40S29S STANDARD SET Ø1/8” to 1” 29pcs Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Ống kẹp dao, Collet kẹp dao INCH TYPE- ANSI-RD 11TC, For STANDARD TAPS-Below standard Tap ER Collet conforms to INCH TYPE- ANSI-RD 11TC

Liên hệ

Mã sản phẩm: INCH TYPE- ANSI-RD 11TC

RD 11TC EDP No. TAP D(Ø) W(0) L Inch Metric 11TC1411 #6 M3 0.141 0.110 0.472 11TC1613 #8 M4 0.168 0.131 0.472 11TC1915 #10 M4.5+M5 0.194 0.152 0.472 11TC2216 #12 - 0.220 0.165 0.551 11TC2519 1/4 M6 0.225 0.191 0.551 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Ống kẹp dao, Collet kẹp dao INCH TYPE- ANSI-RD 16TC, For STANDARD TAPS-Below standard Tap ER Collet conforms to INCH TYPE- ANSI-RD 16TC

Liên hệ

Mã sản phẩm: INCH TYPE- ANSI-RD 16TC

RD 16TC EDP No. TAP D(Ø) W(0) L Inch Metric 16TC1411 #6 M3 0.141 0.110 0.709 16TC1613 #8 M4 0.168 0.131 0.709 16TC1915 #10 M4.5+M5 0.194 0.152 0.709 16TC2216 #12 - 0.220 0.165 0.709 16TC2519 1/4 M6 0.225 0.191 0.709 16TC3123 5/16 M7+M8 0.318 0.238 0.709 16TC3224 7/16 - 0.323 0.242 0.709 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Ống kẹp dao, Collet kẹp dao INCH TYPE- ANSI-RD 20TC, For STANDARD TAPS-Below standard Tap ER Collet conforms to INCH TYPE- ANSI-RD 20TC

Liên hệ

Mã sản phẩm: INCH TYPE- ANSI-RD 20TC

RD 20TC EDP No. TAP D(Ø) W(0) L Inch Metric 20TC1411 #6 M3 0.141 0.110 0.709 20TC1613 #8 M4 0.168 0.131 0.709 20TC1915 #10 M4.5+M5 0.194 0.152 0.709 20TC2216 #12 - 0.220 0.165 0.709 20TC2519 1/4 M6 0.225 0.191 0.709 20TC3123 5/16 M7+M8 0.318 0.238 0.866 20TC3622 3/8 M10 0.367 0.275 0.866 20TC3224 7/16 - 0.323 0.242 0.866 20TC3828 1/2 M12 0.381 0.286 0.866 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Ống kẹp dao, Collet kẹp dao INCH TYPE- ANSI-RD 25TC, For STANDARD TAPS-Below standard Tap ER Collet conforms to INCH TYPE- ANSI-RD 25TC

Liên hệ

Mã sản phẩm: INCH TYPE- ANSI-RD 25TC

RD 25TC EDP No. TAP D(Ø) W(0) L Inch Metric 25TC1411 #6 M3 0.141 0.110 0.709 25TC1613 #8 M4 0.168 0.131 0.709 25TC1915 #10 M4.5+M5 0.194 0.152 0.709 25TC2216 #12 - 0.220 0.165 0.709 25TC2519 1/4 M6 0.225 0.191 0.709 25TC3123 5/16 M7+M8 0.318 0.238 0.866 25TC3622 3/8 M10 0.367 0.275 0.866 25TC3224 7/16 - 0.323 0.242 0.866 25TC3828 1/2 M12 0.381 0.286 0.866 25TC4232 9/16 M14 0.429 0.322 0.984 25TC4836 5/8 M16 0.480 0.360 0.984 25TC5440 11/16 M18 0.542 0.406 0.984 25TC5944 3/4 - 0.590 0.442 0.984 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
Ống kẹp dao, Collet kẹp dao INCH TYPE- ANSI-RD 32TC, For STANDARD TAPS-Below standard Tap ER Collet conforms to INCH TYPE- ANSI-RD 32TC

Liên hệ

Mã sản phẩm: INCH TYPE- ANSI-RD 32TC

RD 32TC EDP No. TAP D(Ø) W(0) L Inch Metric 32TC1411 #6 M3 0.141 0.110 0.709 32TC1613 #8 M4 0.168 0.131 0.709 32TC1915 #10 M4.5+M5 0.194 0.152 0.709 32TC2216 #12 - 0.220 0.165 0.709 32TC2519 1/4 M6 0.225 0.191 0.709 32TC3123 5/16 M7+M8 0.318 0.238 0.866 32TC3627 3/8 M10 0.367 0.275 0.866 32TC3224 7/16 - 0.323 0.242 0.866 32TC3828 1/2 M12 0.381 0.286 0.866 32TC4232 9/16 M14 0.429 0.322 0.984 32TC4836 5/8 M16 0.480 0.360 0.984 32TC5440 11/16 M18 0.542 0.406 0.984 32TC5944 3/4 - 0.590 0.442 0.984 32TC6548 13/16 M20 0.652 0.489 0.984 Hãy liên hệ với chúng tôi để được tư vấn và lấy sản phẩm với giá tốt nhất. Sản phẩm được phân phối trực tiếp bởi CK TOOLS. Hotline: 0931183678-0988990930.
